Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.

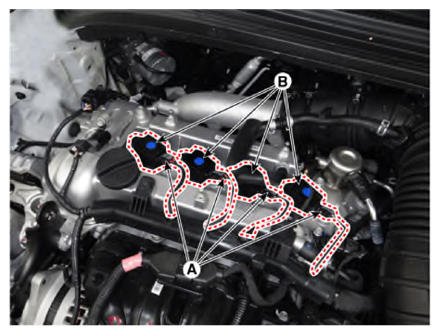

  3. Disconnect the ignition coil connectors (A).
  4. Remove the ignition coil after loosening the mounting bolts (B).
    G13280701Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

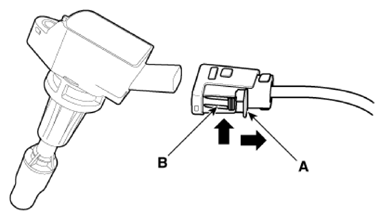

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
      G13280702Courtesy of KIA MOTORS AMERICA, INC.
