Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

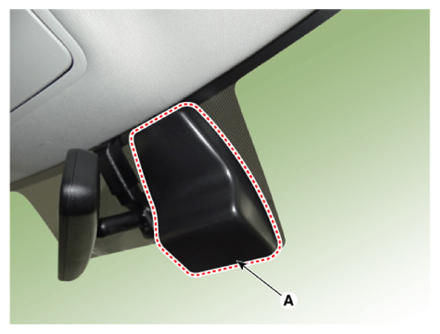

  2. Remove the cover (A).
    G13283121Courtesy of KIA MOTORS AMERICA, INC.

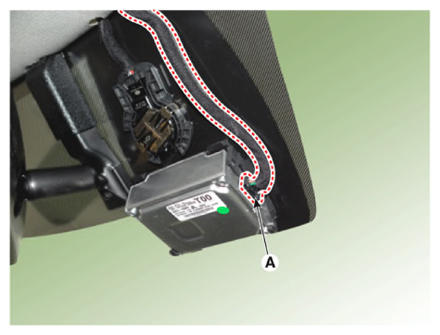

  3. Disconnect the front view camera unit connector (A).
    G13283122Courtesy of KIA MOTORS AMERICA, INC.

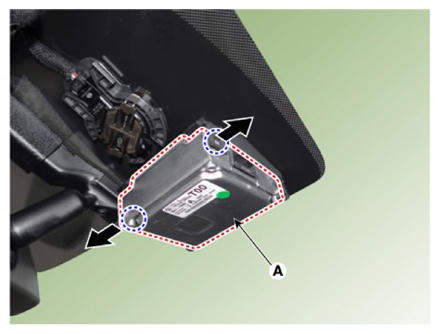

  4. Remove the front view camera unit (A) by releasing the hooks.
    G13283123Courtesy of KIA MOTORS AMERICA, INC.
