Home >> Kia >> 2021 >> Stinger GT-Line, AWD >> Repair and Diagnosis >> Electrical >> Horns >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  2. After loosening each mounting bolt of the low-pitch horn (A) and high-pitch horn (B), detach the connector (C) and remove the horn.

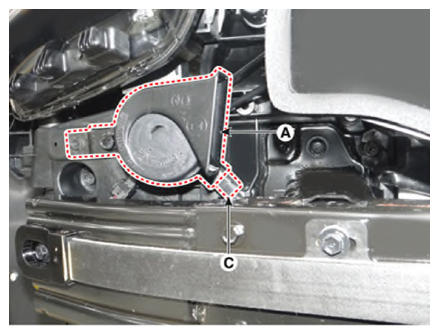

    [Low - Pitch Horn]

    G13426445Courtesy of KIA MOTORS AMERICA, INC.

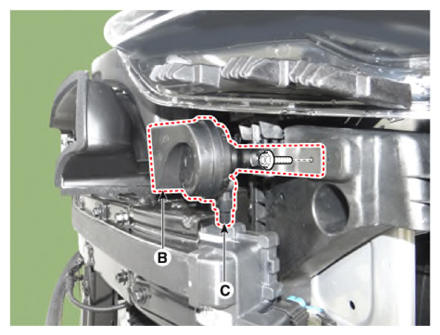

    [High - Pitch Horn]

    G13426446Courtesy of KIA MOTORS AMERICA, INC.
