Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

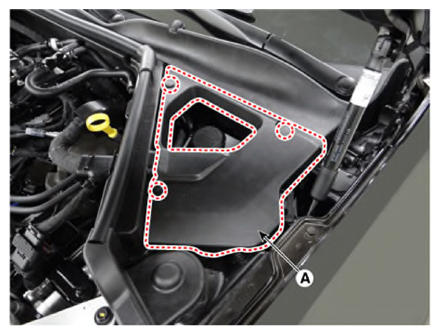

  2. Remove the engine side cover (A).
    G13423452Courtesy of KIA MOTORS AMERICA, INC.

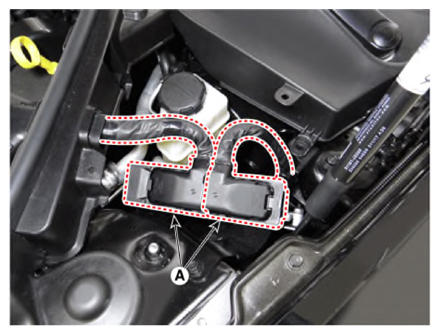

  3. Disconnect the ECM Connector (A).
    G13423453Courtesy of KIA MOTORS AMERICA, INC.

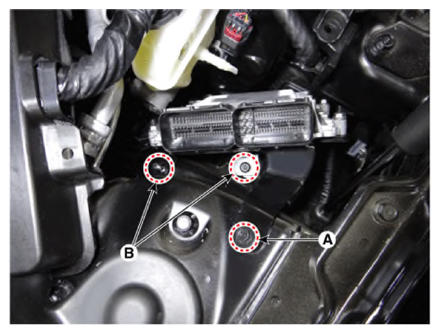

  4. Remove the ECM bracket assembly after loosening the mounting bolt (A) and nuts (B).

    ECM mounting bolt/nut:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13423454Courtesy of KIA MOTORS AMERICA, INC.

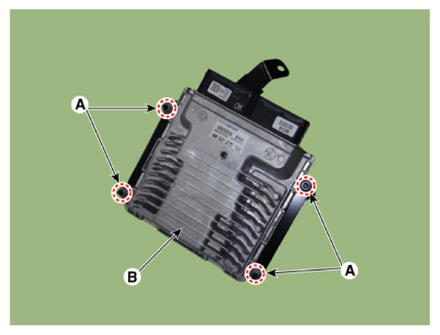

  5. Remove the ECM (B) after loosening the mounting nuts (A).

    ECM bracket mounting bolt/nut:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13423455Courtesy of KIA MOTORS AMERICA, INC.

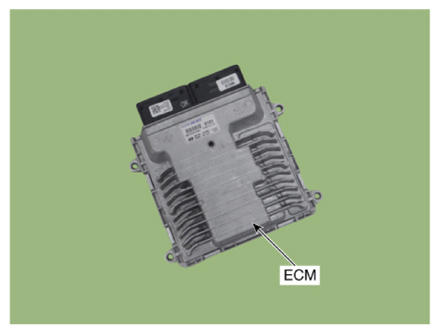

    G13423456Courtesy of KIA MOTORS AMERICA, INC.
