Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the oil pressure characteristics input procedure using the KDS when replacing with a new TCM.
    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".

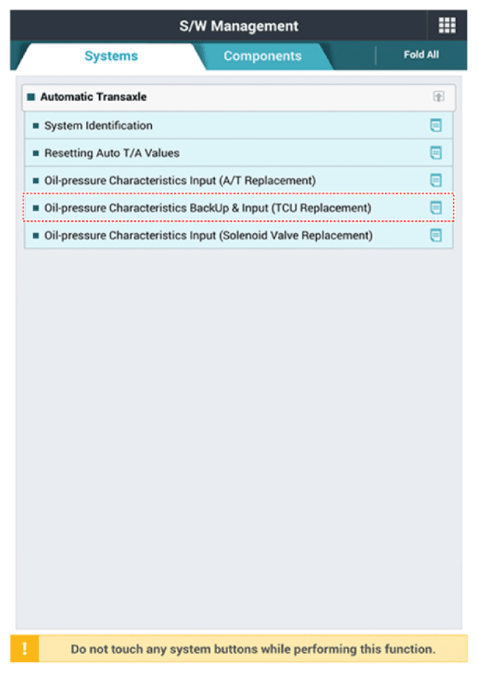

      G13423765Courtesy of KIA MOTORS AMERICA, INC.
    2. Check the condition and then click the "OK".

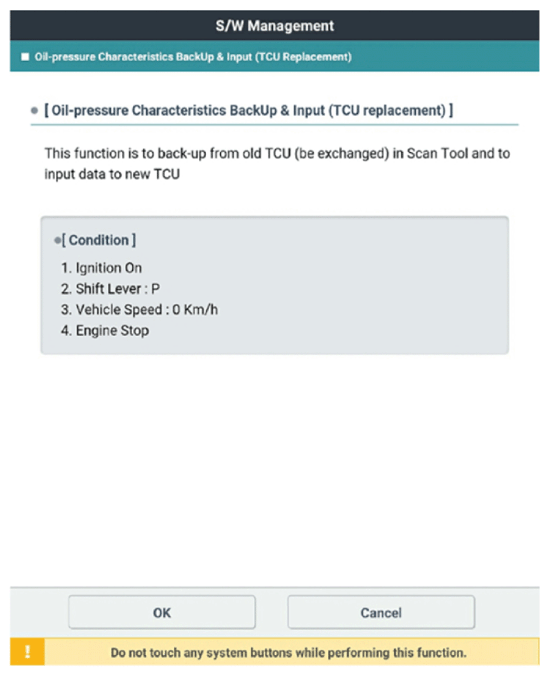

      G13423766Courtesy of KIA MOTORS AMERICA, INC.
    3. Click the "Input".

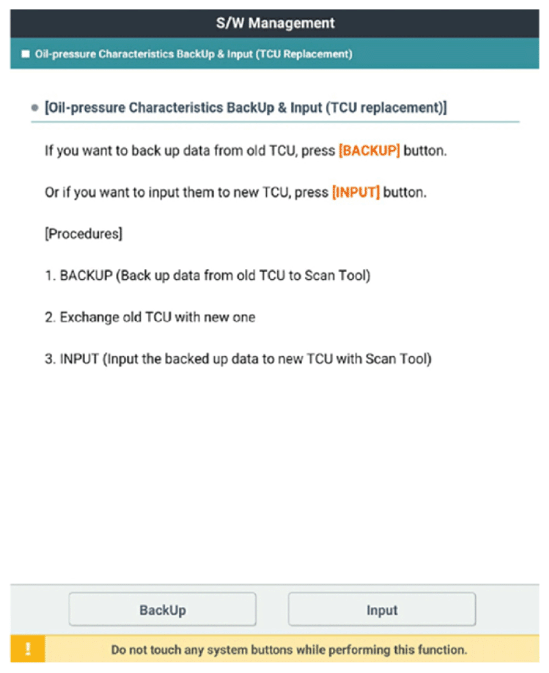

      G13423767Courtesy of KIA MOTORS AMERICA, INC.
    4. Click the "OK".

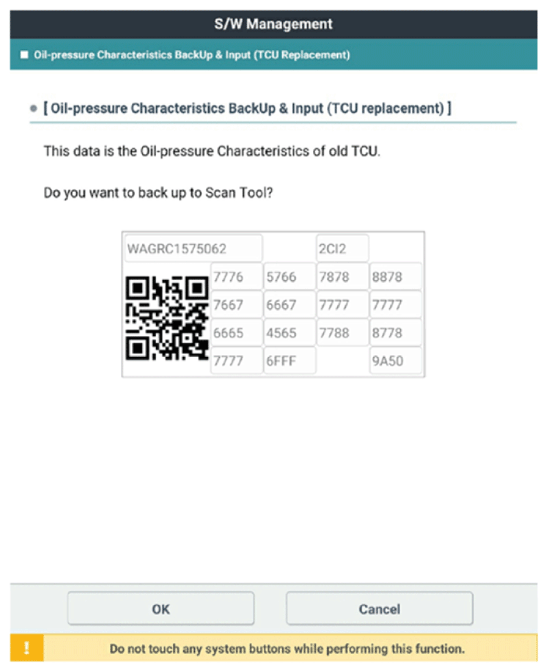

    G13423768Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transmission Control System - "REPAIR PROCEDURES ")
