Repair Procedures: Removal

  1. Remove the ignition coil.

    (Refer to Engine Electrical System - "IGNITION COIL ")

  2. Using a spark plug wrench, remove the spark plug (A).

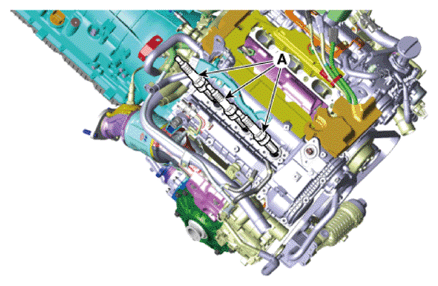

    [Bank 1]

    G13427963Courtesy of KIA MOTORS AMERICA, INC.

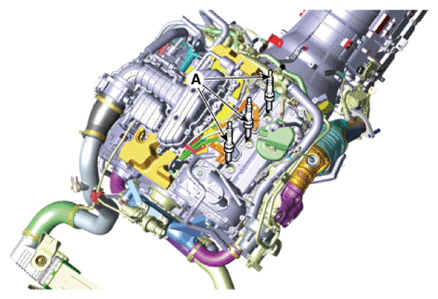

    [Bank 2]

    G13427964Courtesy of KIA MOTORS AMERICA, INC.
