Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

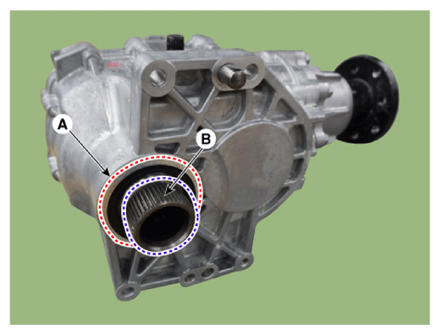

    1. Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.
    2. Smear and cover splines (B) with molybdenum type high pressure grease.

      GREASE SPL-1 or equivalent

      G13310519Courtesy of KIA MOTORS AMERICA, INC.

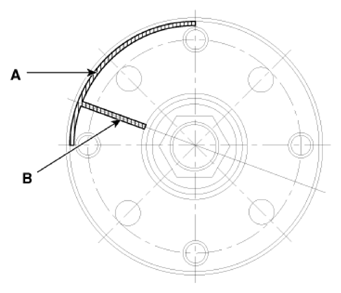

  2. Install the propeller shaft to be near runout marking (Transfer assembly 1ea (A), propeller shaft 1ea (B)) each other.
    G13310520Courtesy of KIA MOTORS AMERICA, INC.
