Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the battery.

    (Refer to Body Electrical System - "BATTERY ")

  3. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the battery tray.

    (Refer to Body Electrical System - "BATTERY ")

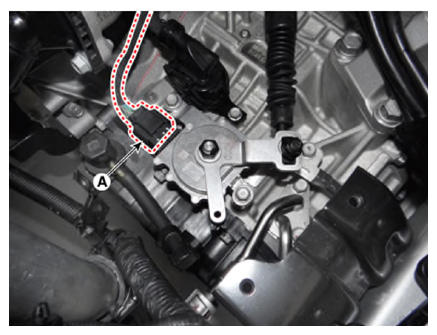

  5. Disconnect the position switch connector (A).
    G13310275Courtesy of KIA MOTORS AMERICA, INC.

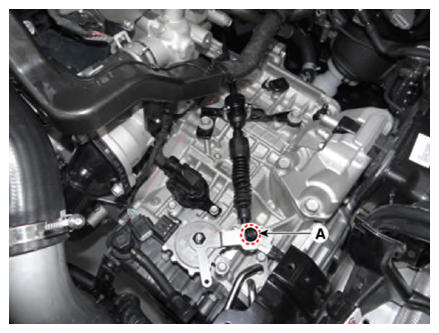

  6. Remove the shift cable after loosening the nut (A).
    G13310276Courtesy of KIA MOTORS AMERICA, INC.

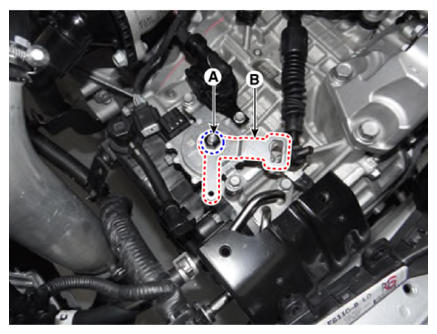

  7. Remove the manual control lever (B) and the washer after removing a nut (A).
    G13310277Courtesy of KIA MOTORS AMERICA, INC.

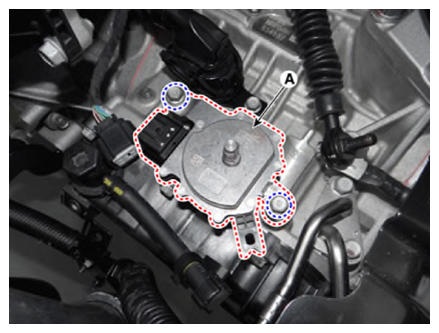

  8. Remove the position switch (A) after loosening the bolts.
    G13310278Courtesy of KIA MOTORS AMERICA, INC.
