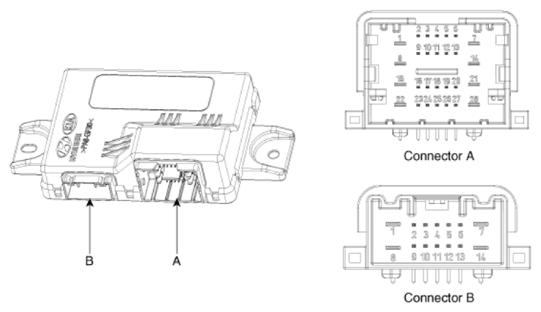

| 1 |
Cinching motor (+) |
Right drive unit close (-) |
| 2 |
Liftgate inner switch illumination |
Right hall sensor power |
| 3 |
- |
Left drive unit shield ground |
| 4 |
Buzzer |
Right hall sensor ground |
| 5 |
B-CAN_Low |
Right drive unit shield ground |
| 6 |
B-CAN_High |
Left hall sensor power |
| 7 |
- |
Left drive unit motor close (+) |
| 8 |
Cinching motor (-) |
Right drive unit motor close (+) |
| 9 |
- |
Right hall sensor 1 |
| 10 |
N gear position |
Right hall sensor 2 |
| 11 |
- |
Left hall sensor ground |
| 12 |
Left anti pinch sensor power |
Left hall sensor 1 |
| 13 |
Right anti pinch sensor power |
Left hall sensor 2 |
| 14 |
- |
Left drive unit motor close (-) |
| 15 |
Motor power |
|
| 16 |
- |
| 17 |
Full lock switch |
| 18 |
Half lock switch |
| 19 |
Home position switch ground |
| 20 |
Latch switch ground |
| 21 |
System ground |
| 22 |
System power |
| 23 |
Liftgate open/close switch |
| 24 |
Liftgate inner switch |
| 25 |
Home position switch |
| 26 |
Left anti pinch sensor ground |
| 27 |
Right anti pinch sensor ground |
| 28 |
Power ground |
