Liftgate Lid Handle

  1. Remove the liftgate lid trim.

    (Refer to Body - "LIFTGATE TRIM ")

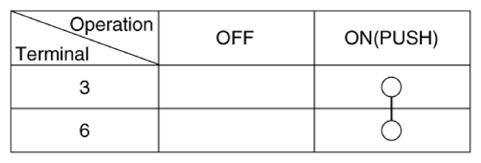

  2. Check for continuity between the terminals.

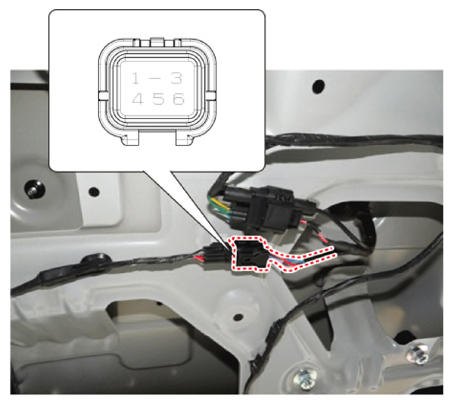

G13312526Courtesy of KIA MOTORS AMERICA, INC.
G13312527Courtesy of KIA MOTORS AMERICA, INC.
