Home >> Kia >> 2021 >> Telluride EX, FWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

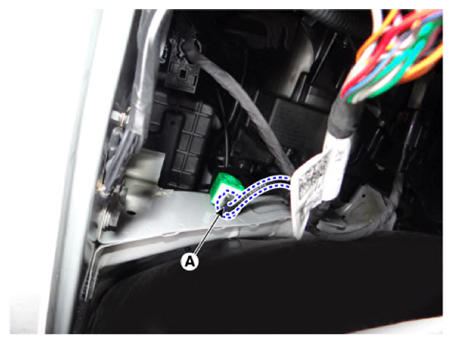

  3. Disconnect the connector (A) from the buzzer.
    G13312524Courtesy of KIA MOTORS AMERICA, INC.

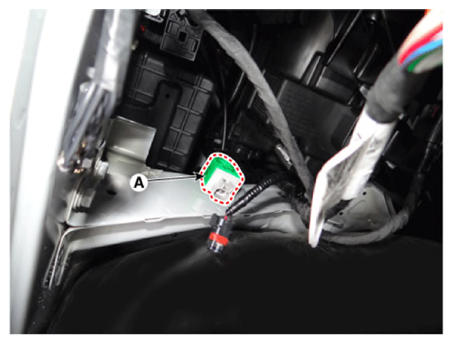

  4. Remove the buzzer (A).
G13312525Courtesy of KIA MOTORS AMERICA, INC.
