Power Window Main Switch

  1. Disconnect the negative battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

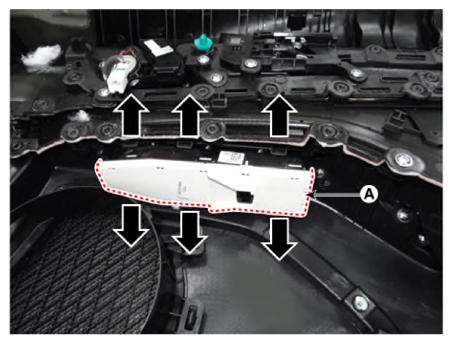

  3. Remove the driver area unit (A) by pushing the holders in the direction of arrow.
G13312409Courtesy of KIA MOTORS AMERICA, INC.
