Home >> Kia >> 2021 >> Telluride EX, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Repair Procedures >> Removal >> Power Window Sub Switch

Power Window Sub Switch

  1. Remove the door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

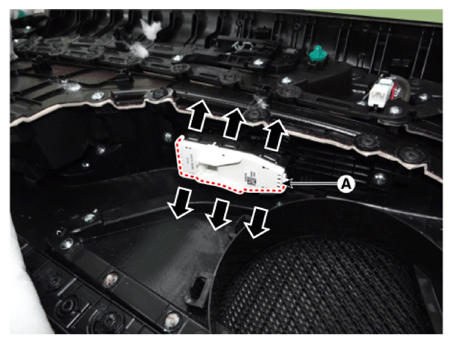

  2. Remove the driver area unit (A) by pushing the holders in the direction of arrow.
G13312410Courtesy of KIA MOTORS AMERICA, INC.
