Home >> Kia >> 2021 >> Telluride EX, FWD >> Repair and Diagnosis >> Electrical >> Horns >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

  2. Disconnect the connector (A) from the horn.

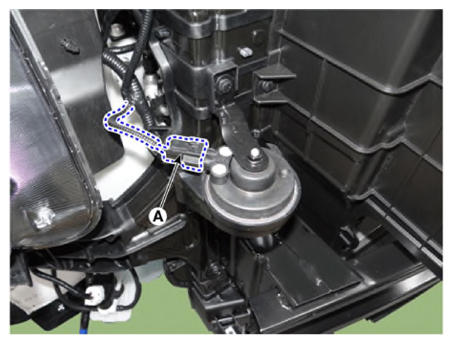

    [High pitch]

    G13312114Courtesy of KIA MOTORS AMERICA, INC.

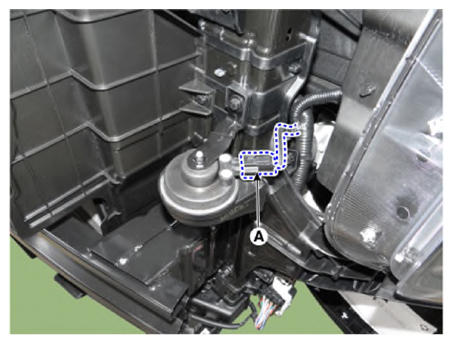

    [Low pitch]

    G13312115Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the horn (A) after loosening the mounting bolt.

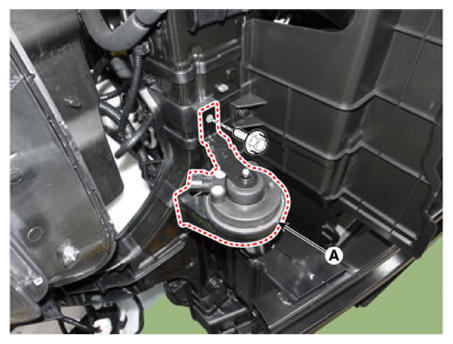

    [High pitch]

    G13312116Courtesy of KIA MOTORS AMERICA, INC.

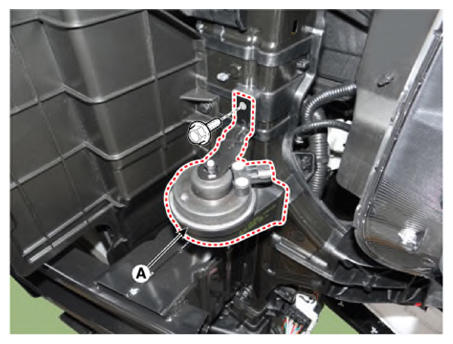

    [Low pitch]

G13312117Courtesy of KIA MOTORS AMERICA, INC.
