Repair Procedures: Installation

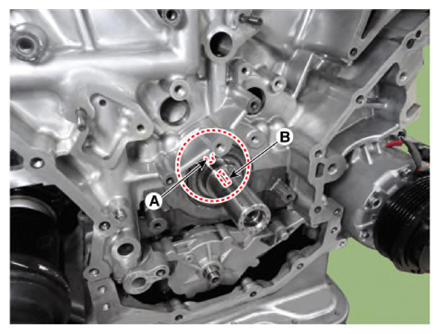

  1. The key (A) of crankshaft should be aligned with the timing mark (B) of block. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.
    G13309792Courtesy of KIA MOTORS AMERICA, INC.

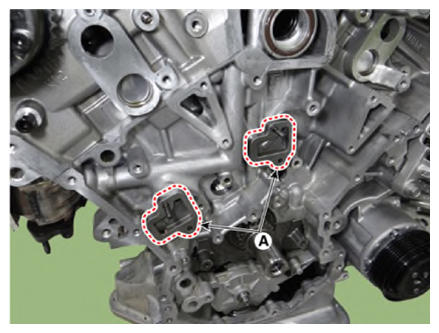

  2. Install the tensioner adapter assembly (A).
    G13309793Courtesy of KIA MOTORS AMERICA, INC.

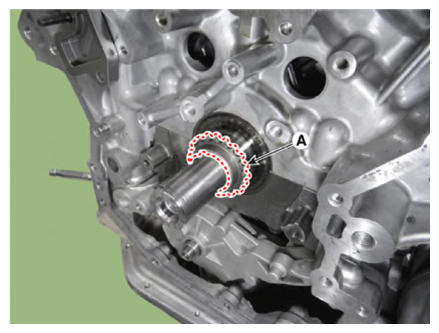

  3. Install the crankshaft sprocket (A). (LH camshaft drive).
    G13309794Courtesy of KIA MOTORS AMERICA, INC.

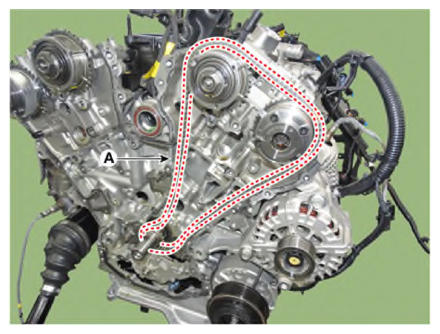

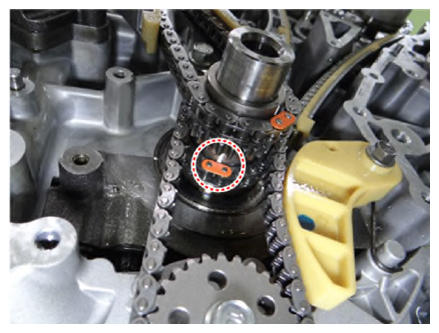

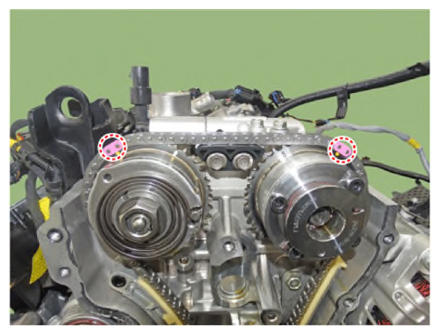

  4. Install the LH timing chain (A).
    G13309795Courtesy of KIA MOTORS AMERICA, INC.
    G13309796Courtesy of KIA MOTORS AMERICA, INC.
    G13309797Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below:
    Crankshaft sprocket → Timing chain guide → Exhaust camshaft sprocket → Intake camshaft sprocket.
    When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.

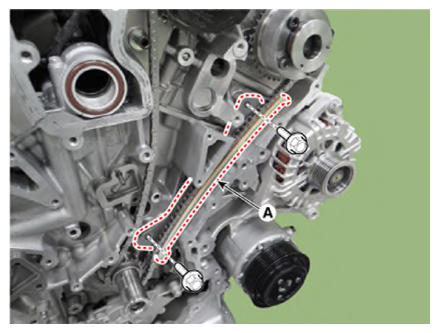

  5. Install the LH timing chain guide (A).

    Tightening torque:

    19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

    G13309798Courtesy of KIA MOTORS AMERICA, INC.

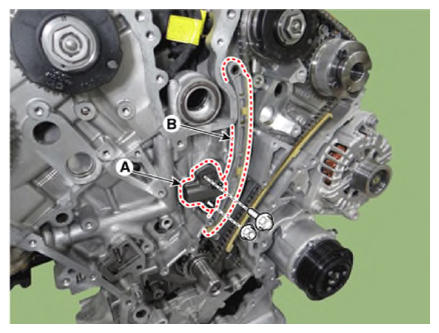

  6. Install the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).

    Tightening torque

    1. 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
    2. 18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb.ft)
    G13309799Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Always use new LH timing chain tensioner.

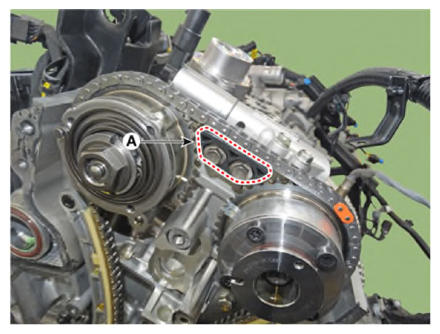

  7. Install the LH timing chain cam to cam guide (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13309800Courtesy of KIA MOTORS AMERICA, INC.

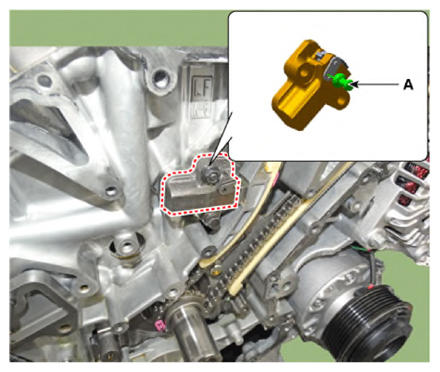

  8. Pull out the pins of LH timing chain auto tensioner.
    G13309801Courtesy of KIA MOTORS AMERICA, INC.

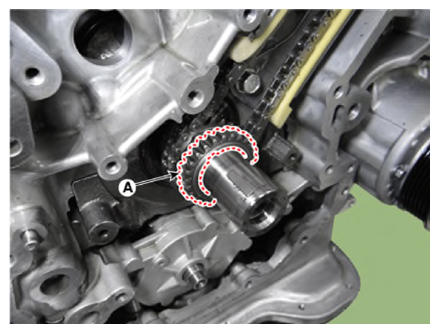

  9. Install the crankshaft sprocket (A) (Oil pump drive).
    G13309802Courtesy of KIA MOTORS AMERICA, INC.

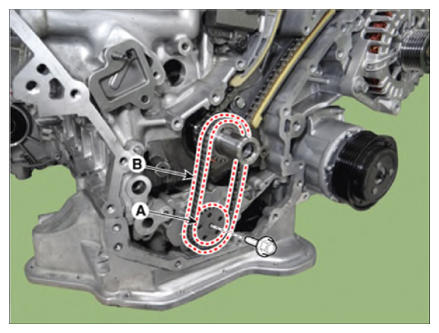

  10. Install the oil pump chain sprocket (A) and oil pump chain (B).

    Tightening torque:

    19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

    G13309803Courtesy of KIA MOTORS AMERICA, INC.

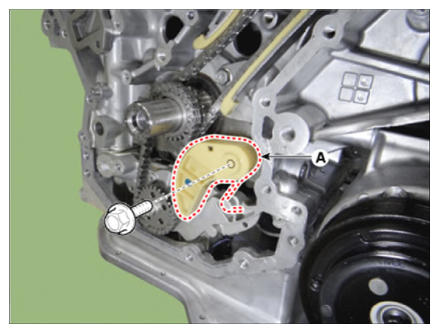

  11. Install the oil pump chain tensioner assembly (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13309804Courtesy of KIA MOTORS AMERICA, INC.

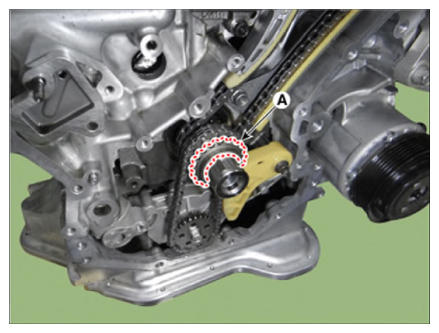

  12. Install the camshaft sprocket. (RH camshaft drive)
    G13309805Courtesy of KIA MOTORS AMERICA, INC.

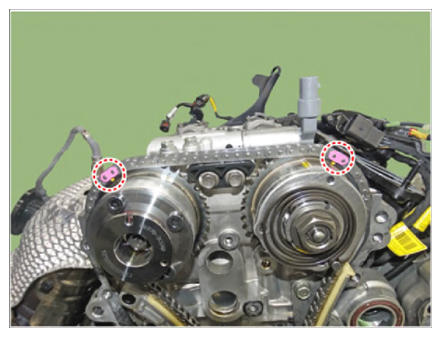

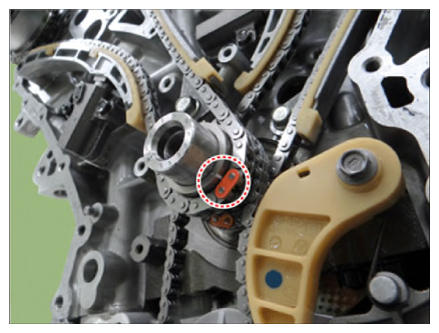

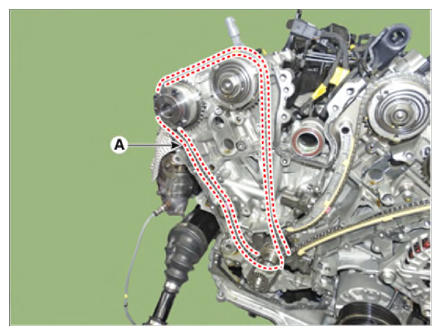

  13. Install the RH timing chain (A).
    G13309806Courtesy of KIA MOTORS AMERICA, INC.
    G13309807Courtesy of KIA MOTORS AMERICA, INC.
    G13309808Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below:
    Crankshaft sprocket → Timing chain guide → Intake camshaft sprocket → Exhaust camshaft sprocket.
    When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.

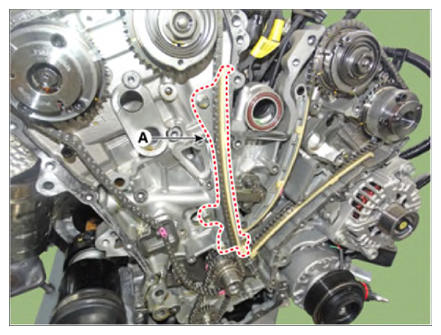

  14. Install the RH timing chain guide (A).

    Tightening torque:

    A: 19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

    G13309809Courtesy of KIA MOTORS AMERICA, INC.

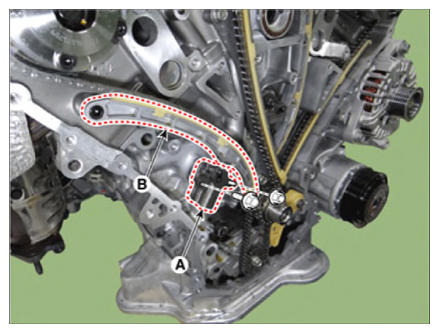

  15. Install the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).

    Tightening torque

    1. 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
    2. 18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb.ft)
    G13309810Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Always use new timing chain tensioner.

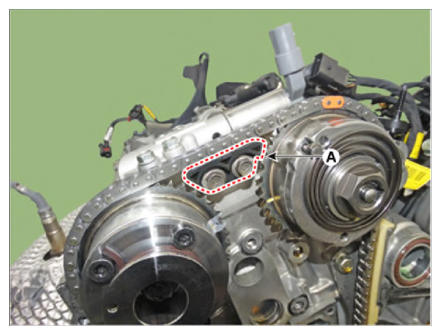

  16. Install the RH timing chain cam to cam guide (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13309811Courtesy of KIA MOTORS AMERICA, INC.

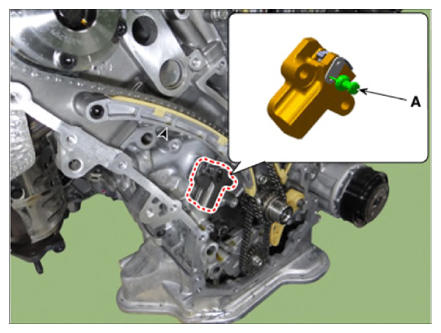

  17. Pull out the pins of RH timing chain auto tensioner.
    G13309812Courtesy of KIA MOTORS AMERICA, INC.
  18. After rotating the crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm the timing mark.

    [LH Intake]

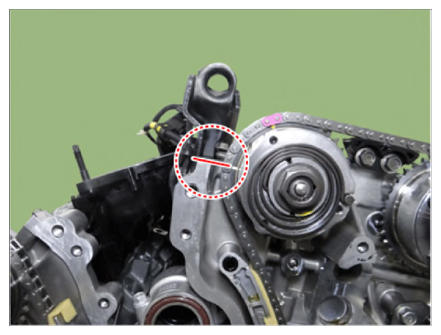

    G13309813Courtesy of KIA MOTORS AMERICA, INC.

    [LH Exhaust]

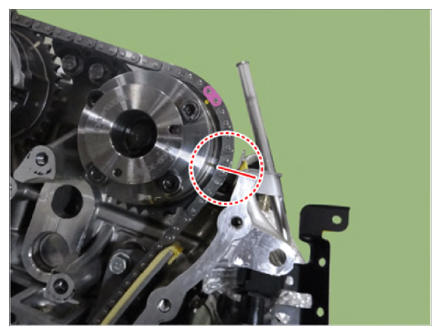

    G13309814Courtesy of KIA MOTORS AMERICA, INC.

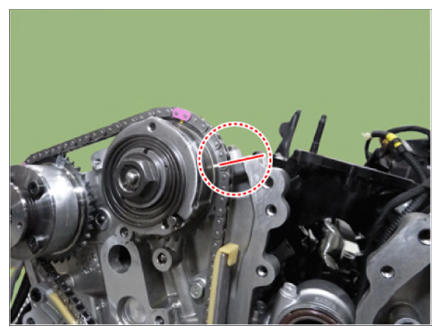

    [RH Intake]

    G13309815Courtesy of KIA MOTORS AMERICA, INC.

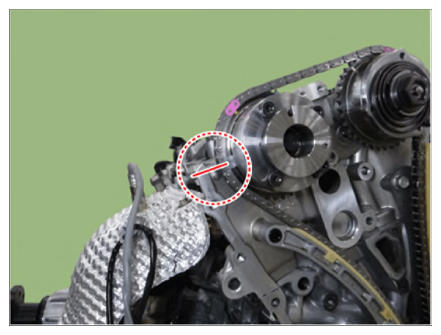

    [RH Exhaust]

    G13309816Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Always turn the crankshaft clockwise.
    Turning the crankshaft counterclockwise before building up oil pressure in the hydraulic timing chain tensioner may result in the chain disengagement from the sprocket teeth.
  19. Install the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

  20. Install the remaining parts in the reverse order of removal.
    NOTE:
    • Refill engine oil.
    • Clean the battery posts and cable terminals with sandpaper. Assemble and then apply grease to prevent corrosion.
    • Inspect for fuel leakage.
      • After assembling the fuel line, turn on the ignition switch (without operating the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
      • Repeat this operation two to three times, and then check for fuel leakage at any point on the fuel lines.
    • Refill radiator and reservoir tank with engine coolant.
    • Bleed air from the cooling system.
      • Start engine and let it run until it warms up (until the radiator fan operates 3 or 4 times).
      • Turn off the engine and let it cool down. Check the level in the radiator, and add coolant if needed. This will allow trapped air to be released from the cooling system.
      • Put radiator cap on tightly, then run the engine again and check for leaks.
