Repair Procedures: Removal

  1. Set No. 1 cylinder to TDC/compression.

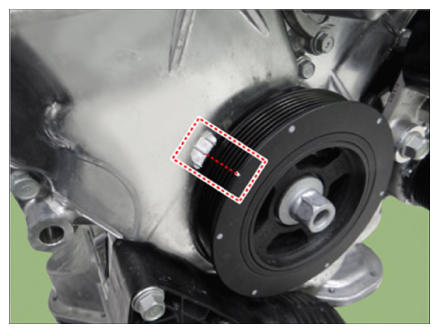

    1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.
      G13309767Courtesy of KIA MOTORS AMERICA, INC.
    2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft clockwise one revolution (360°).

      [LH Intake]

      G13309768Courtesy of KIA MOTORS AMERICA, INC.

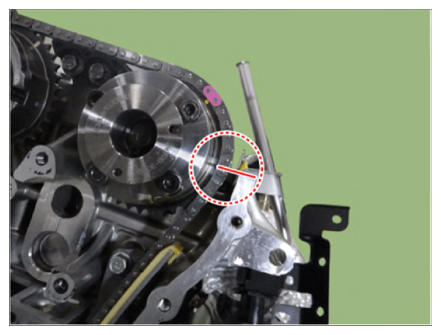

      [LH Exhaust]

      G13309769Courtesy of KIA MOTORS AMERICA, INC.

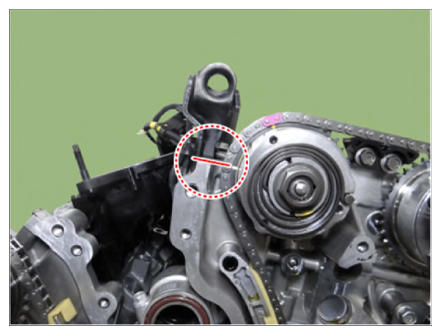

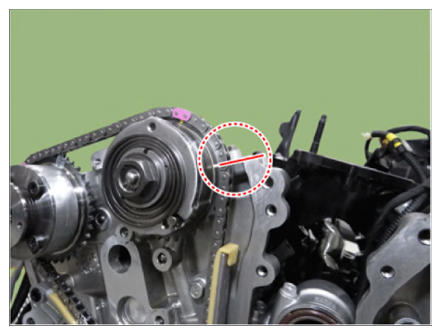

      [RH Intake]

      G13309770Courtesy of KIA MOTORS AMERICA, INC.

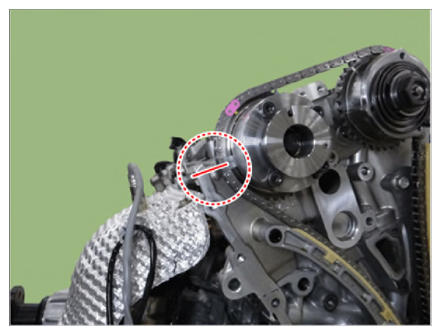

      [RH Exhaust]

      G13309771Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: Do not rotate engine counterclockwise.
  2. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

    NOTE: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.

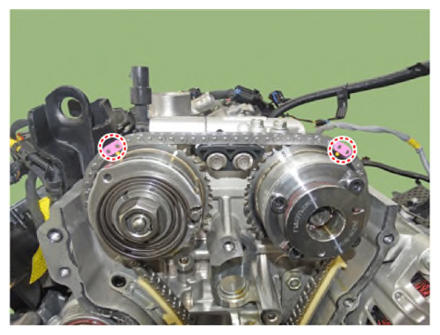

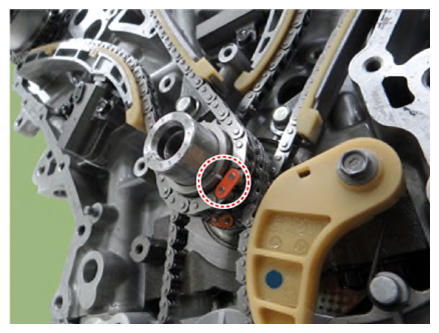

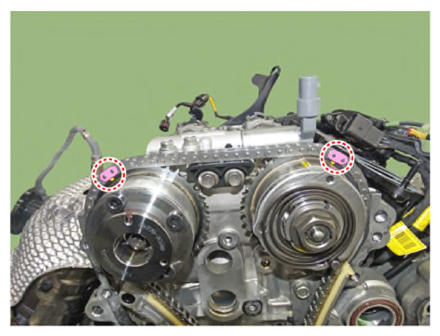

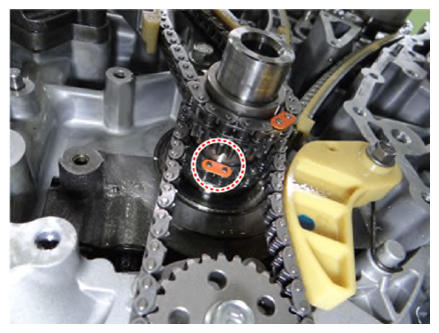

    NOTE: Before removing the timing chain, mark the RH/LH timing chain with an identification based on the location of the sprocket because the identification mark on the chain for TDC (Top Dead Center) can be erased.
    G13309772Courtesy of KIA MOTORS AMERICA, INC.
    G13309773Courtesy of KIA MOTORS AMERICA, INC.
    G13309774Courtesy of KIA MOTORS AMERICA, INC.
    G13309775Courtesy of KIA MOTORS AMERICA, INC.

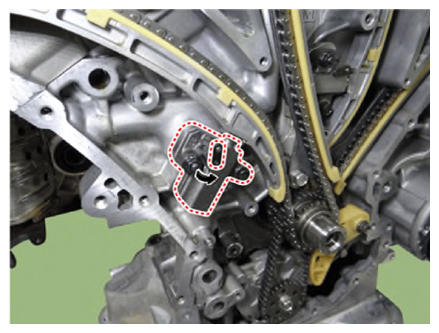

  3. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.
    G13309776Courtesy of KIA MOTORS AMERICA, INC.

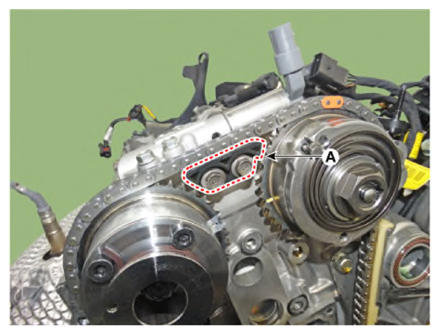

  4. Remove the RH timing chain cam to cam guide (A).
    G13309777Courtesy of KIA MOTORS AMERICA, INC.

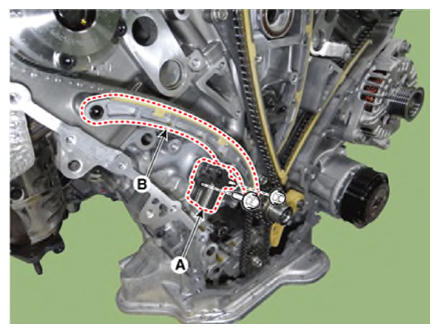

  5. Remove the RH timing chain auto tensioner (A) and the RH timing chain tensioner arm (B).
    G13309778Courtesy of KIA MOTORS AMERICA, INC.

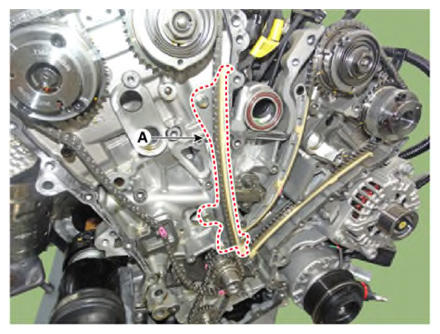

  6. Remove the RH timing chain guide (A).
    G13309779Courtesy of KIA MOTORS AMERICA, INC.

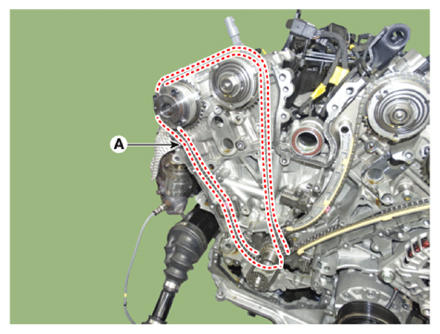

  7. Remove the RH timing chain (A).
    G13309780Courtesy of KIA MOTORS AMERICA, INC.

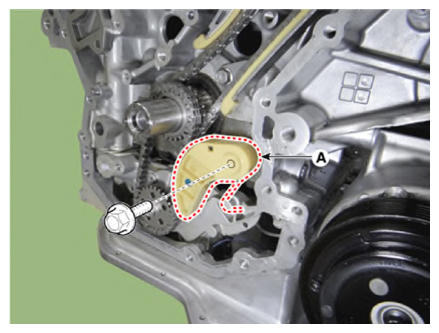

  8. Remove the oil pump chain tensioner assembly (A).
    G13309781Courtesy of KIA MOTORS AMERICA, INC.

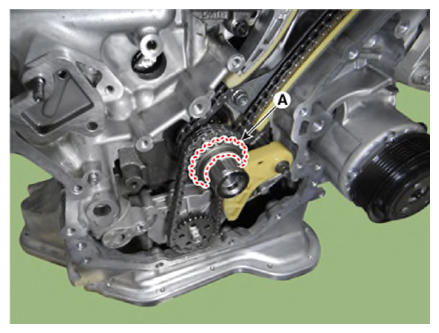

  9. Remove the crankshaft sprocket (A) (RH camshaft drive).
    G13309782Courtesy of KIA MOTORS AMERICA, INC.

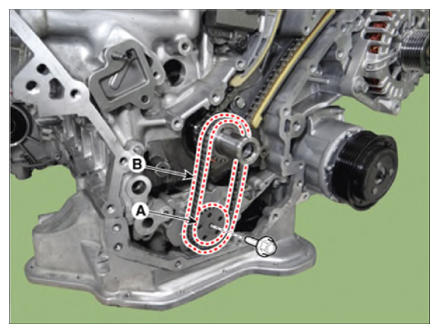

  10. Remove the oil pump chain sprocket (A) and oil pump chain (B).
    G13309783Courtesy of KIA MOTORS AMERICA, INC.

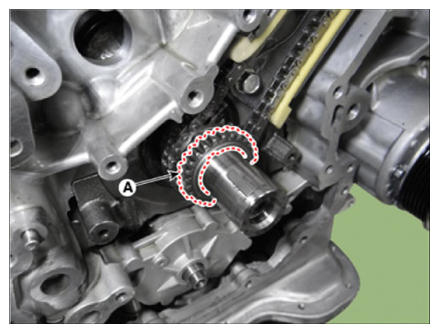

  11. Remove the crankshaft sprocket (A) (Oil pump drive).
    G13309784Courtesy of KIA MOTORS AMERICA, INC.

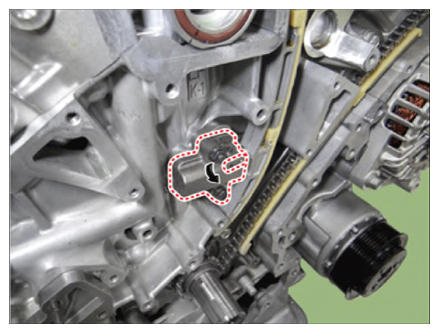

  12. Release the ratchet by pulling the link down using a thin rod. Compress the piston and then insert a stopper pin into the hole on the ratchet to hold the compressed piston.
    G13309785Courtesy of KIA MOTORS AMERICA, INC.

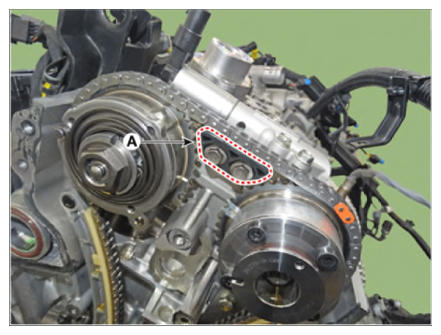

  13. Remove the LH timing chain cam to cam guide (A).
    G13309786Courtesy of KIA MOTORS AMERICA, INC.

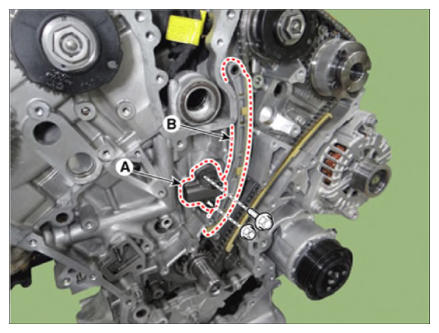

  14. Remove the LH timing chain auto tensioner (A) and LH timing chain tensioner arm (B).
    G13309787Courtesy of KIA MOTORS AMERICA, INC.

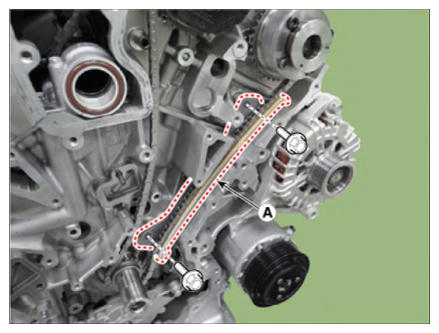

  15. Remove the LH timing chain guide (A).
    G13309788Courtesy of KIA MOTORS AMERICA, INC.

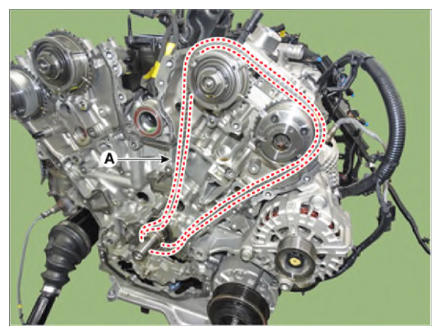

  16. Remove the LH timing chain (A).
    G13309789Courtesy of KIA MOTORS AMERICA, INC.
  17. Remove the crankshaft sprocket (A). (LH camshaft drive).
    G13309790Courtesy of KIA MOTORS AMERICA, INC.

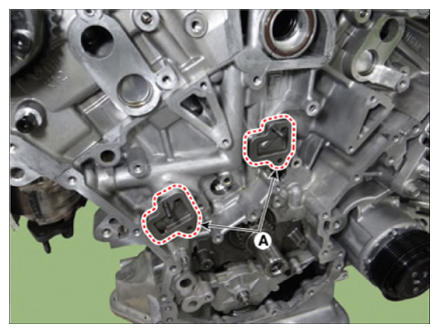

  18. Remove the tensioner adapter assembly (A).
    G13309791Courtesy of KIA MOTORS AMERICA, INC.
