Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Check the cleanliness of the pressure sensor before installation.
- Check the pressure sensor O-ring (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

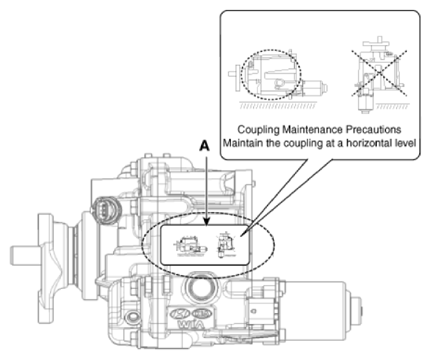

- Keep it level with the sticker (A) on the top of the coupling.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
