Repair Procedures: Replacement

1. Remove the center pillar upper trim.

   (Refer to Interior Trim - "CENTER PILLAR TRIM ")

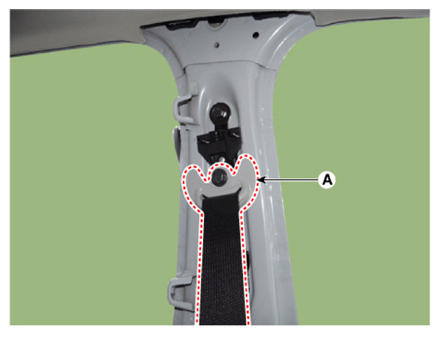

2. After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).

   Tightening torque:

   39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

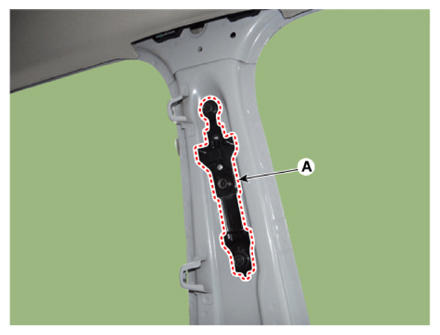

3. After loosening the mounting bolts, remove the height adjust (A).

   Tightening torque:

   39.2 - 53.9 N.m (4.0 - 5.5Kgf.m, 28.9 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. To install, reverse removal procedure.

Information

Replace any damaged clips.
