Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the oil pressure characteristics input procedure using the KDS when replacing with a new TCM.

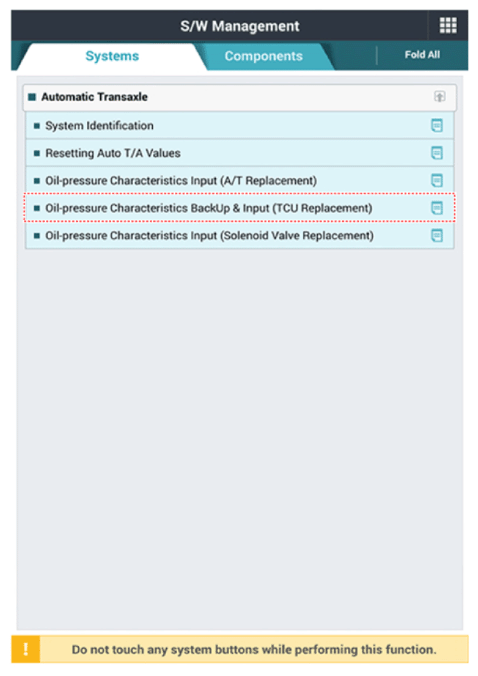

    1. Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
      G13310236Courtesy of KIA MOTORS AMERICA, INC.

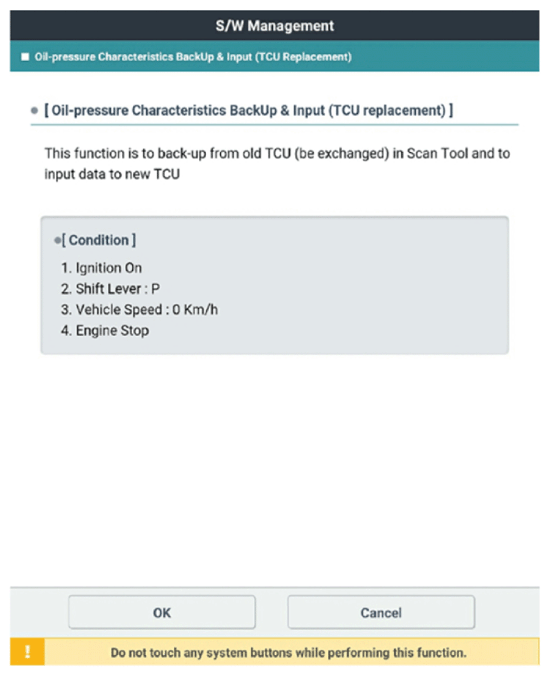

    2. Check the condition and then click the "OK".
      G13310237Courtesy of KIA MOTORS AMERICA, INC.

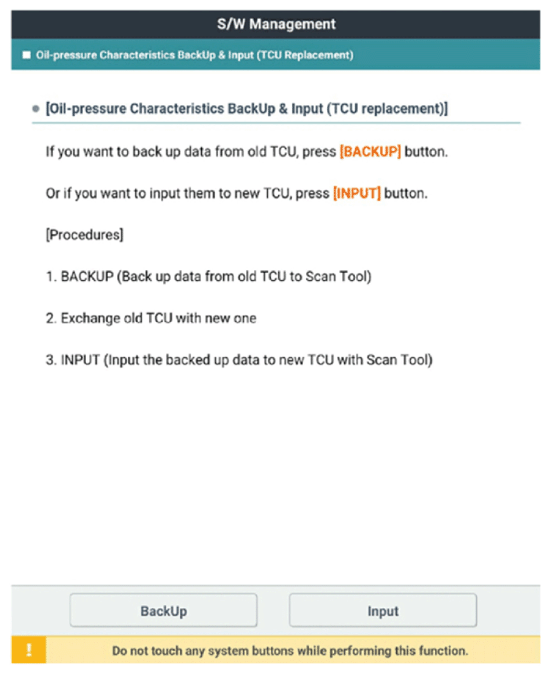

    3. Click the "Input".
      G13310238Courtesy of KIA MOTORS AMERICA, INC.

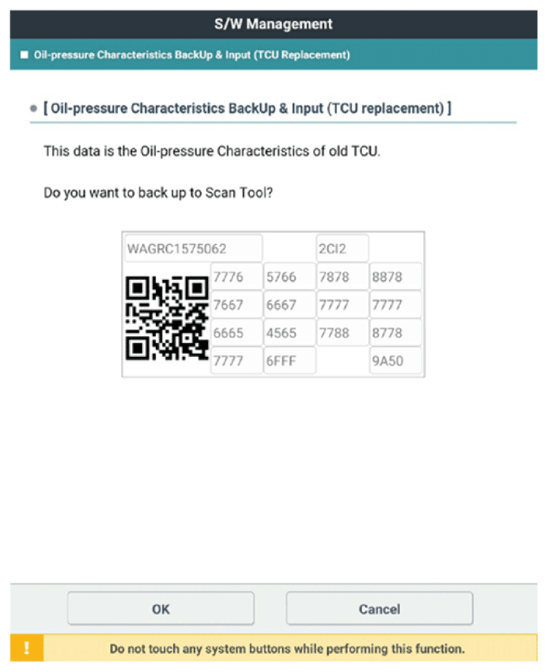

    4. Click the "OK"
    G13310239Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
