Tailgate Open Switch

  1. Disconnect the battery negative (-) terminal.
  2. Remove the tailgate lower trim.

    (Refer to Body - "TAILGATE TRIM ")

  3. Check for continuity between the terminals.

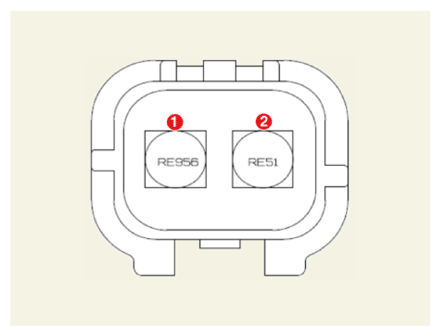

G14806653Courtesy of KIA MOTORS AMERICA, INC.

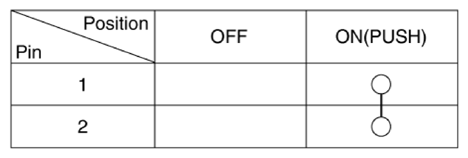

G14806654Courtesy of KIA MOTORS AMERICA, INC.
