Timing Chain: Installation

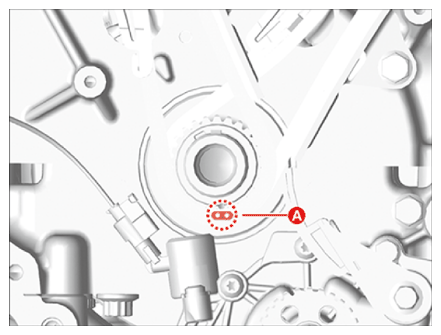

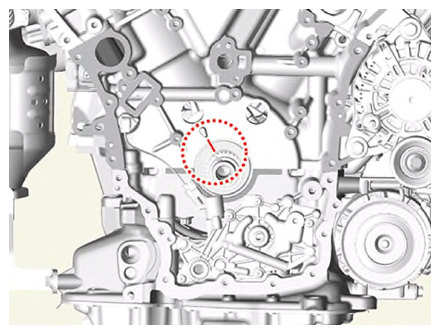

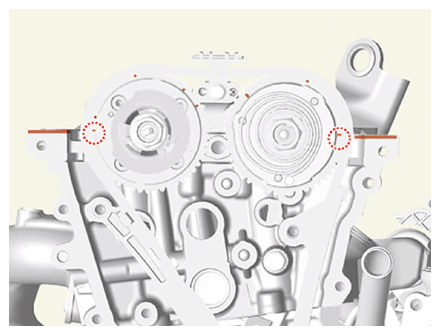

Align the crankshaft key with the timing mark on the cylinder block, at this time placing the piston of no. 1 cylinder on the compression TDC.

Courtesy of KIA MOTORS AMERICA, INC.

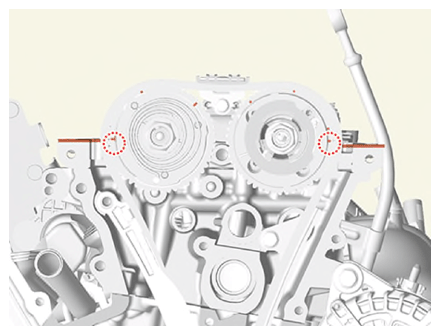

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

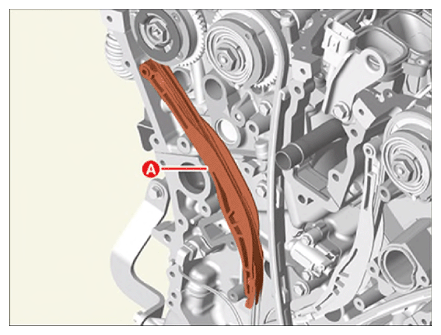

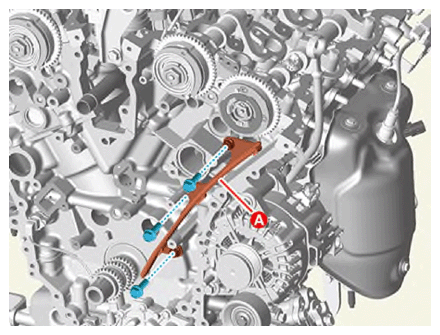

Install the LH timing chain guide (A).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

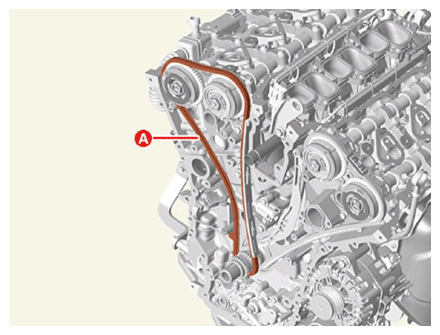

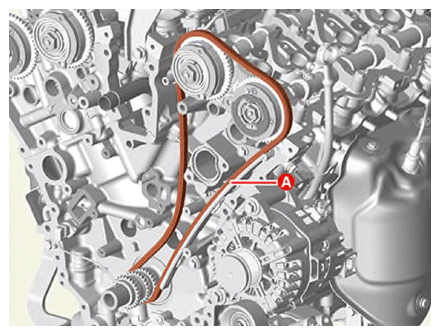

Install the LH timing chain (A) with adapter.

Courtesy of KIA MOTORS AMERICA, INC.

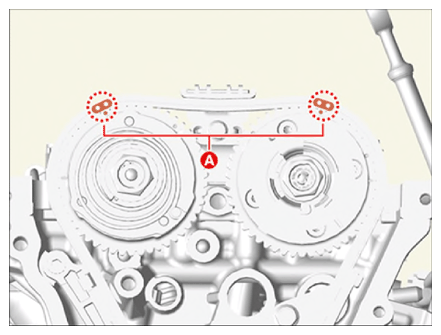

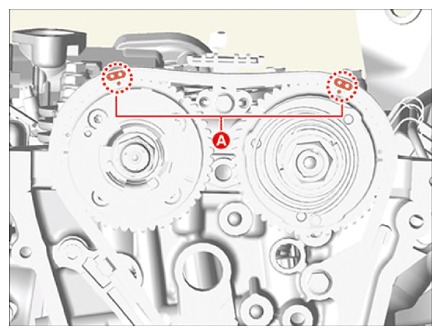

NOTE: When installing the timing chain, match the timing marks on each sprocket and the timing marks on the timing chain (A).

[CVVT]

Courtesy of KIA MOTORS AMERICA, INC.

[Crankshaft]

Courtesy of KIA MOTORS AMERICA, INC.

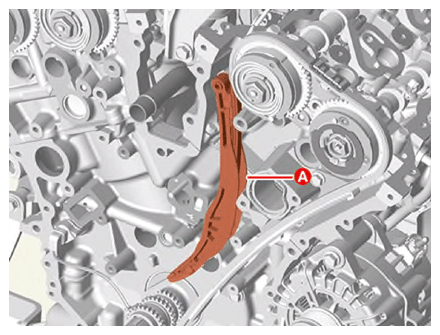

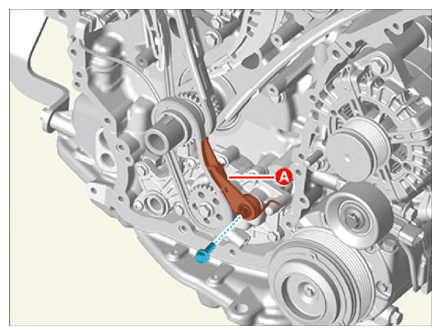

Install the LH timing chain tensioner arm (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Visually check the timing chain tensioner arm bolt and if it is damaged, replace the part.

Tightening torque:

18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb.ft)

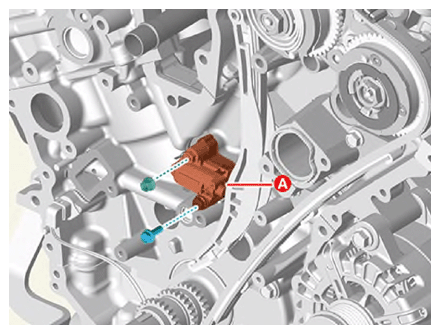

Install the LH timing chain tensioner (A) with adapter.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

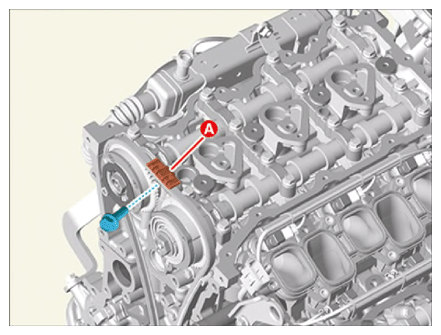

Install the LH timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

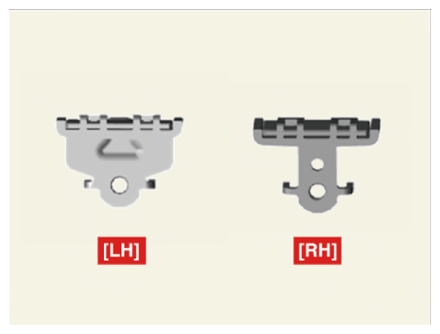

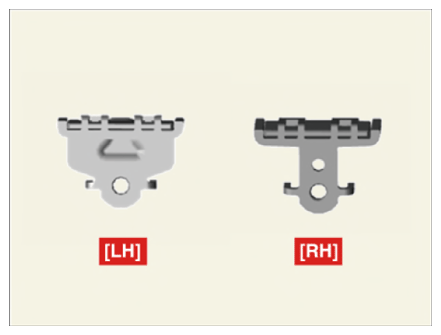

NOTE: Install the LH and RH timing chain cam-to-cam guide according to specifications.

Courtesy of KIA MOTORS AMERICA, INC.

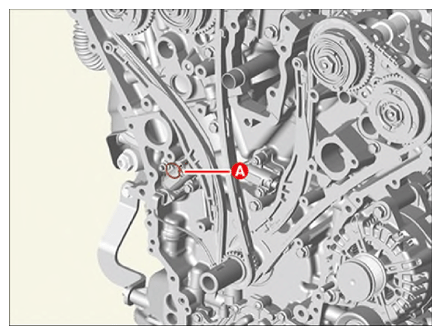

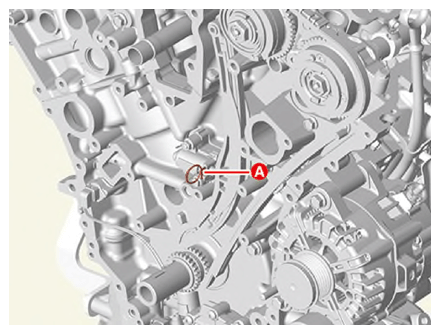

Remove the LH timing chain tensioner fixing pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

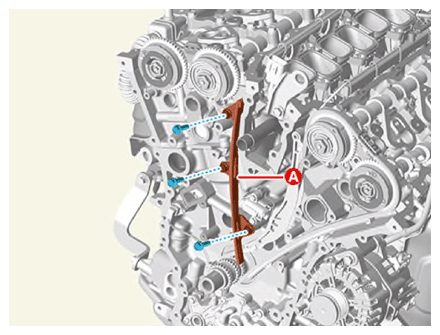

Install the RH timing chain guide (A).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the RH timing chain (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing the timing chain, match the timing marks on each sprocket and the timing marks on the timing chain (A).

[CVVT]

Courtesy of KIA MOTORS AMERICA, INC.

[Crankshaft]

Courtesy of KIA MOTORS AMERICA, INC.
Install the RH timing chain tensioner arm (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Visually check the timing chain tensioner arm bolt and if it is damaged, replace the part.

Tightening torque:

18.6 - 21.6 N.m (1.9 - 2.2 kgf.m, 13.7 - 15.9 lb.ft)

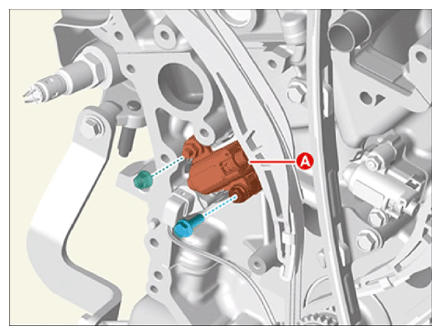

Install the RH timing chain tensioner (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

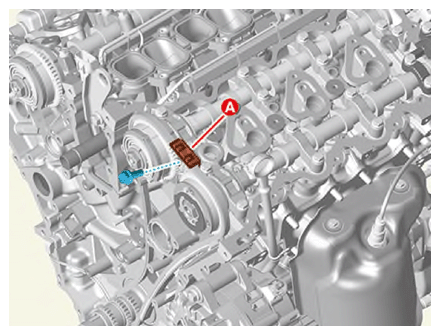

Remove the timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Install the LH and RH timing chain cam-to-cam guide according to specifications.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the RH timing chain tensioner fixing pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

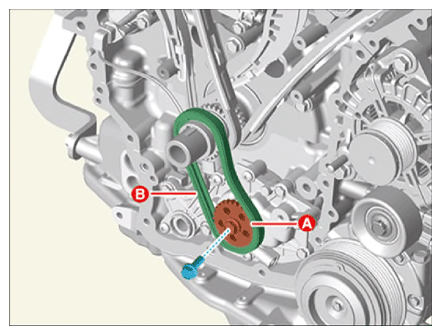

Fit the oil pump sprocket (A) and oil pump chain (B).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the oil pump chain tensioner (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Turn the crankshaft clockwise 2 times, then check the timing again.
NOTE:
- Do not turn the crankshaft counterclockwise.
- Turning the crankshaft counter clockwise before building up oil pressure in the timing chain tensioner may result in the chain disengaging from the sprocket teeth.
Install the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
Install in the reverse order of removal
Fill the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Fill the engine coolant.
(Refer to Cooling System - "COOLANT ")

NOTE: Be sure to add coolant according to the ITM coolant refill method.
Start engine and check for any leaks.
