Camshaft Position Sensor (CMPS)
>>
Components & Components Location
>>
Components Location
>>
Bank2
Components Location: Bank2

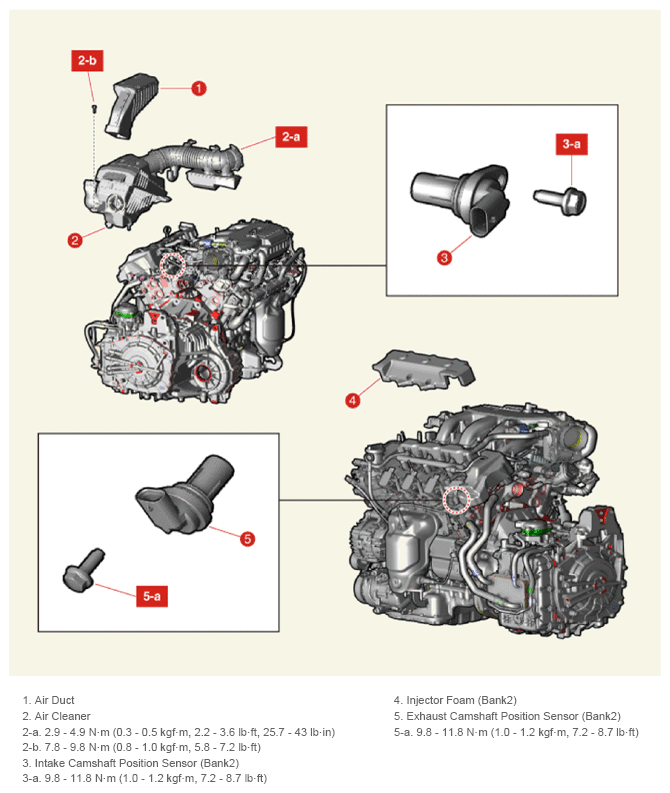

Fig 1: Camshaft Position Sensor Components Location With Torque Specification (Bank2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
