Component Inspection

  1. Check fuel pump operation by connecting power to terminal 4 (+) and ground to terminal 5 (-) of connector.

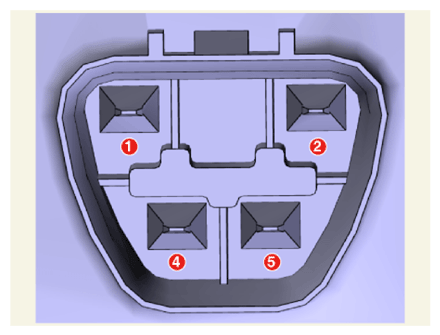

G14797425Courtesy of KIA MOTORS AMERICA, INC.
Terminal Function
1 Fuel sender (+)
2 Fuel sender (-)
4 Fuel pump (+)
5 Fuel pump (-)
