Wheel Alignment: Tires/Wheels/Alignment: Alignment: Adjustment: [Front]: Toe

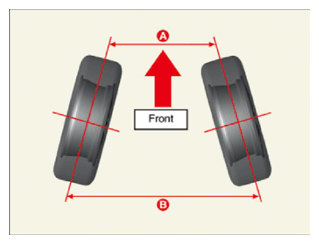

Toe-in (B-A) is adjusted by rotating the tie rod turnbuckle. The toe-in of the left front wheel can be reduced by turning the tie rod toward the rear of the car. The toe-in adjusted by turning the tie rods of the left and right wheels in the same amount.
Toe (Total): 0.1° ± 0.2°
Toe (Individual): 0.05° ± 0.1°
| Item | Descriptions |
|---|---|
| A - B < 0 | Toe in (+) |
| A - B > 0 | Toe out (-) |

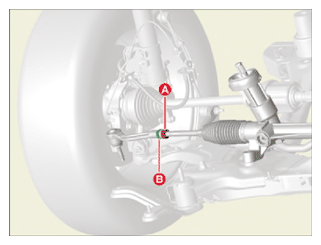

Tie rod (A) specified torque: 49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.7 lb.ft)
NOTE:
To adjust the tie rod (A) torque, hold the (B) with a wrench.
