Wheel Alignment: Tires/Wheels/Alignment: Tire: Installation

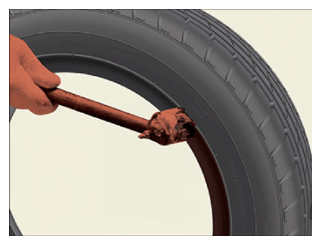

Apply tire soap or lubrication to the top and bottom tire beads.

Courtesy of KIA MOTORS AMERICA, INC.

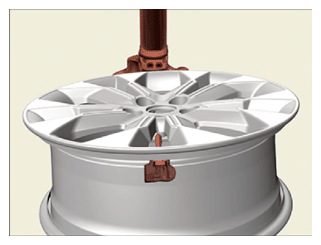

To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.

Courtesy of KIA MOTORS AMERICA, INC.

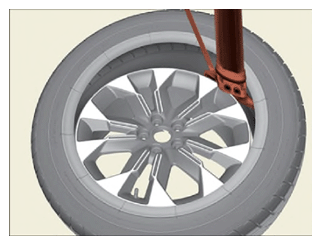

Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Mount the tire on the wheel so the bead hits the rim edge (at 6 o'clock) behind the sensor.

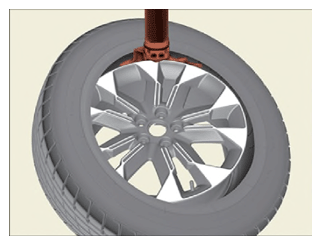

To fit the top bead, press the tire at 3 o'clock and rotate the rim clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

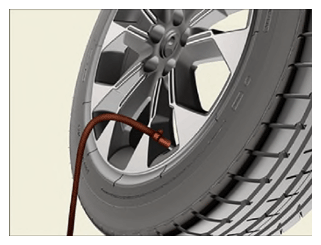

Inflate the tire until both beads seat.

Courtesy of KIA MOTORS AMERICA, INC.

TIRE PRESSURE SPECIFICATION

Tire	Front	Rear
235/65 R17	240 kPa (35 psi)	240 kPa (35 psi)
235/55 R19	250 kPa (36 psi)	250 kPa (36 psi)
