Oil Temperature Sensor (E-Module)
>>
Components & Components Location
>>
Component Location
Component Location

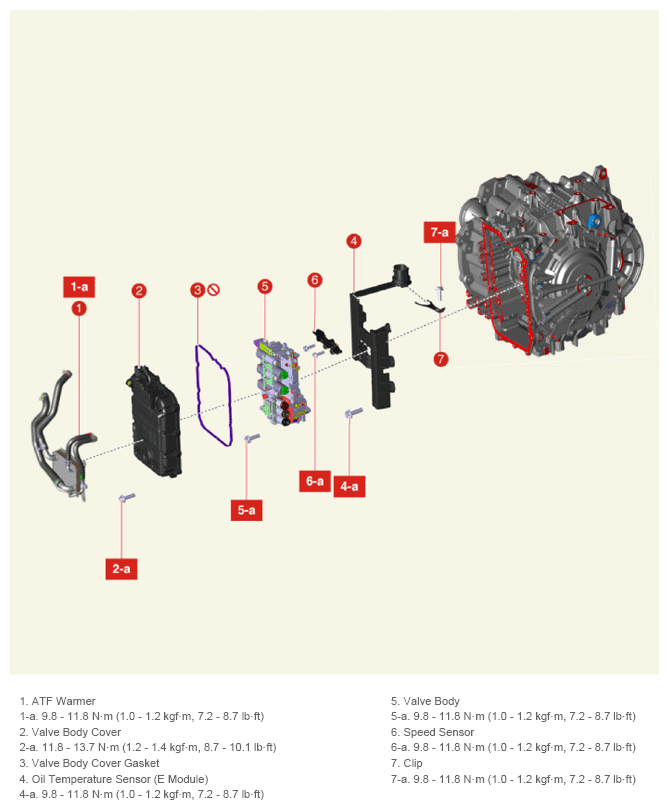

Fig 1: Oil Temperature Sensor (E-Module) Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
