Home >> Kia >> 2022 >> EV6 First Edition >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Inspection >> Buzzer

Smart Key Unit: Inspection: Buzzer

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

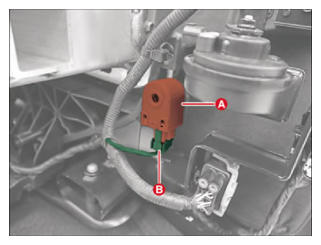

  3. Disconnect the connector (B) from buzzer (A).
    G14861798Courtesy of KIA MOTORS AMERICA, INC.

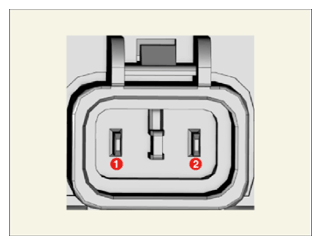

  4. Check for continuity between the terminals.
G14861799Courtesy of KIA MOTORS AMERICA, INC.
