Tailgate Outside Handle Switch

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the tailgate lid trim.

    (Refer to Body - "TAILGATE LID TRIM ")

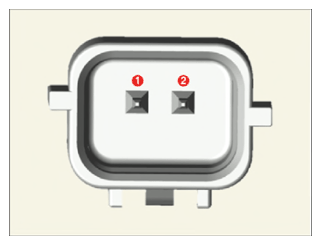

  3. Check for continuity between the terminals.
G14861797Courtesy of KIA MOTORS AMERICA, INC.
Terminal Function
Switch OFF Switch ON
1 - 2 Discontinuity Continuity
