Smart Key Code Saving

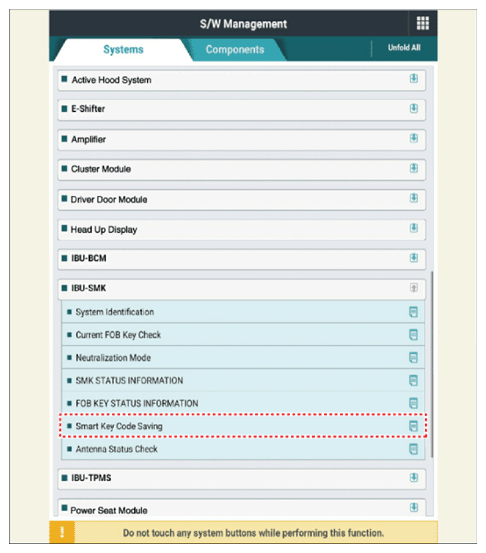

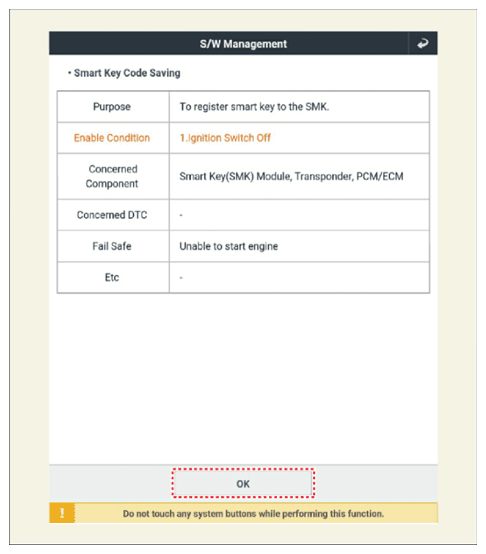

Select the "Smart Key Code Saving" on the menu by using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

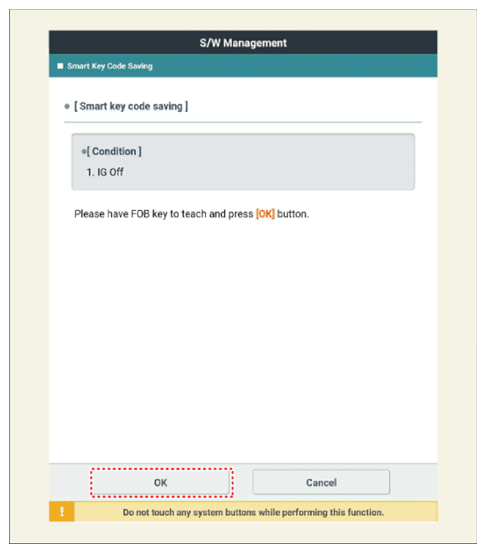

After having the teaching smart key, press "OK" button.

Courtesy of KIA MOTORS AMERICA, INC.

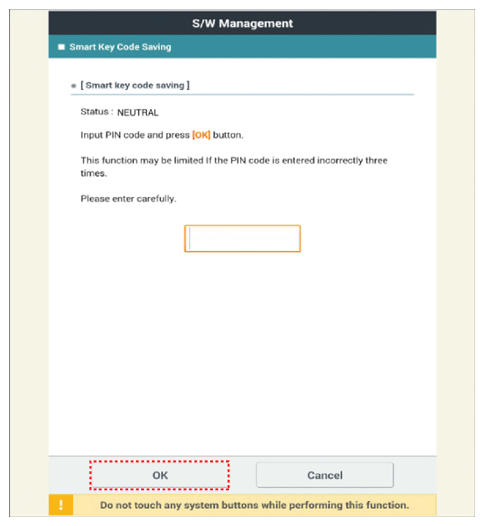

Input the "Pin code" for key teaching.

Courtesy of KIA MOTORS AMERICA, INC.

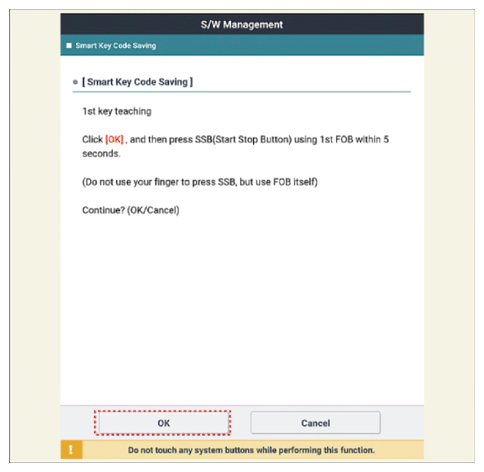

Input the "Pin code" for first key teaching.

Courtesy of KIA MOTORS AMERICA, INC.

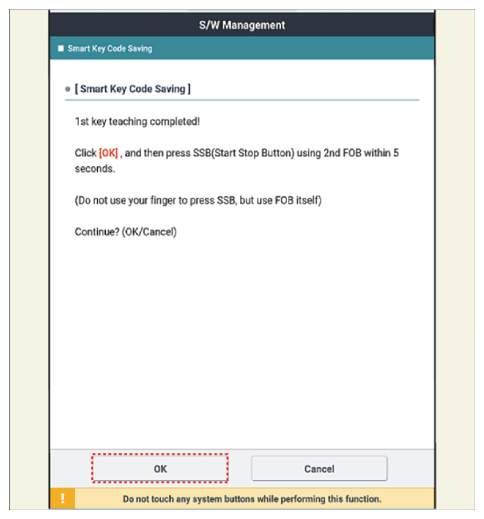

Confirm the message "First key teaching completed".

Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

Courtesy of KIA MOTORS AMERICA, INC.
The screen will be shown as below when key teaching process is completed.

Courtesy of KIA MOTORS AMERICA, INC.
