Removal & Installation: Removal

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the console upper cover assembly.

    (Refer to Body - "CONSOLE UPPER COVER ")

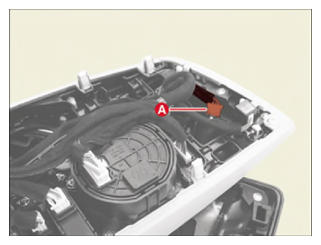

  3. Disconnect the start/stop button (SSB) connector (A).
    G14861536Courtesy of KIA MOTORS AMERICA, INC.

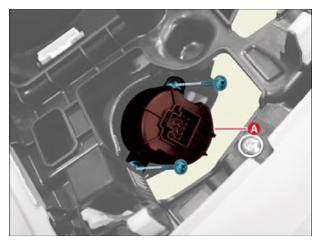

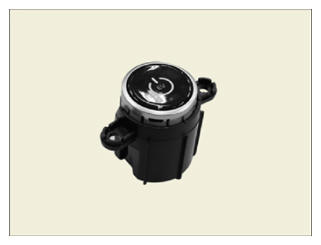

  4. Remove the SSB (A) after removing the screws.
G14861537Courtesy of KIA MOTORS AMERICA, INC.
G14861538Courtesy of KIA MOTORS AMERICA, INC.
