Smart Key Neutralization

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization mode".

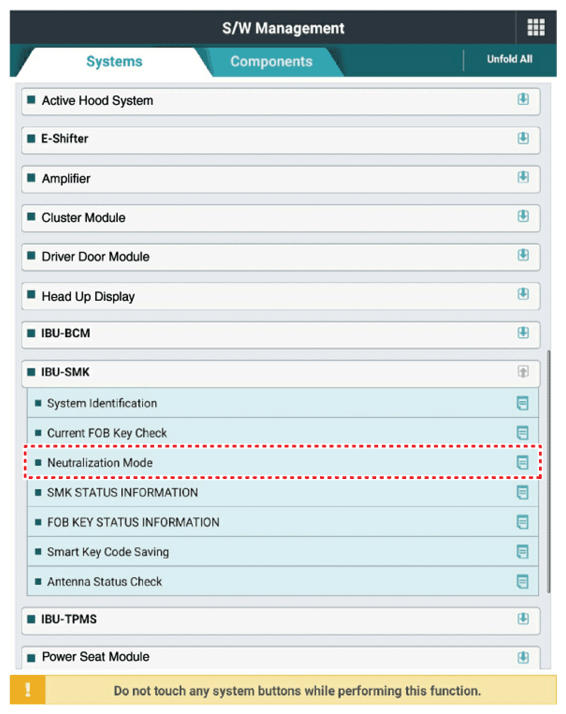

    G14557039Courtesy of KIA MOTORS AMERICA, INC.

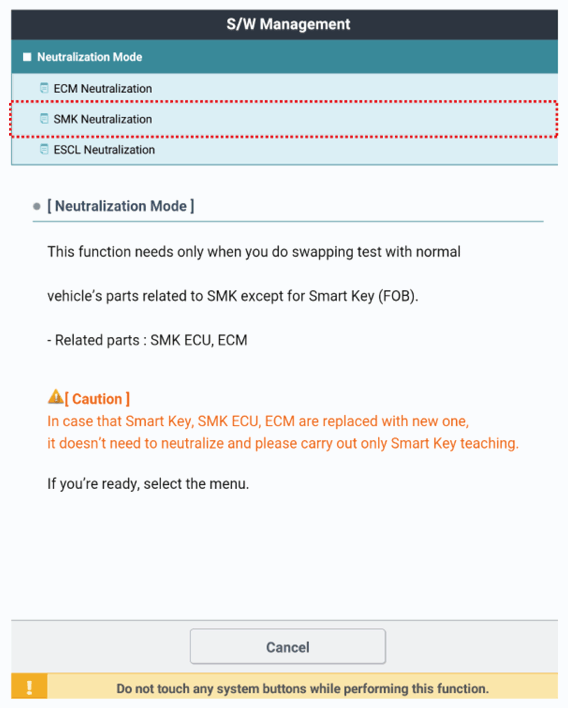

    G14557040Courtesy of KIA MOTORS AMERICA, INC.

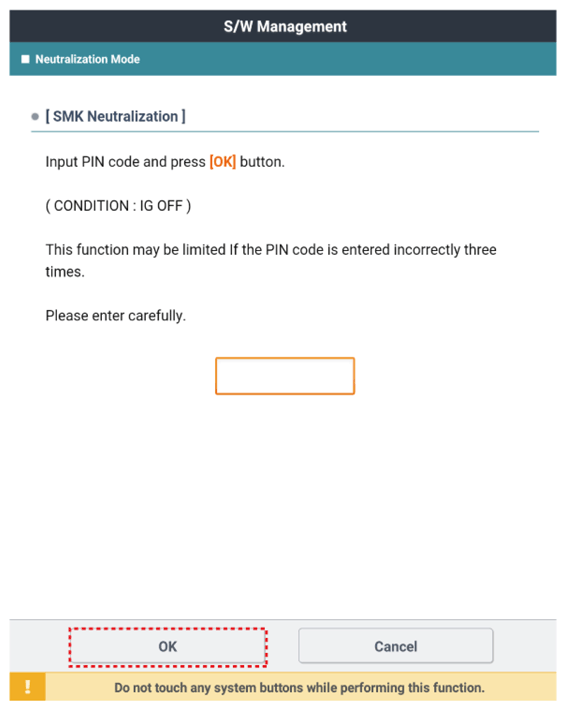

    G14557041Courtesy of KIA MOTORS AMERICA, INC.

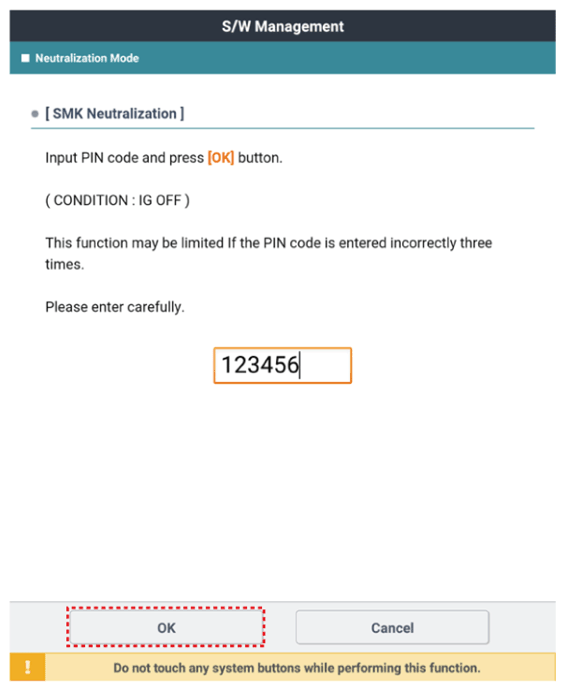

    G14557042Courtesy of KIA MOTORS AMERICA, INC.

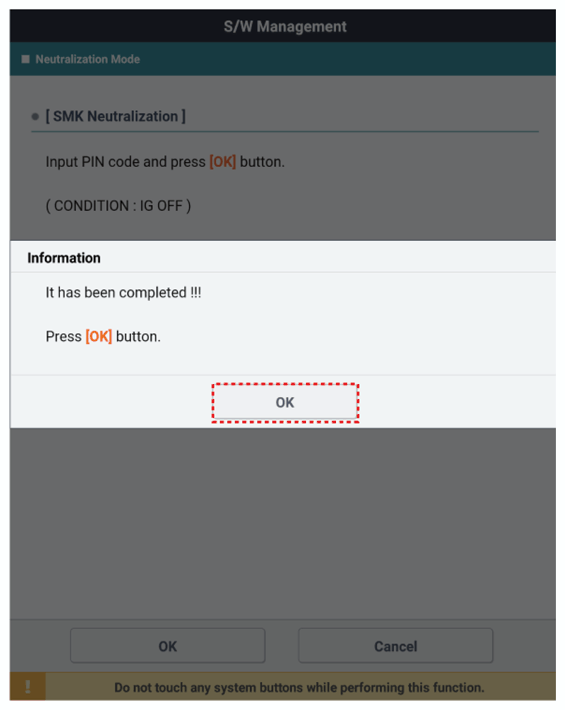

    G14557043Courtesy of KIA MOTORS AMERICA, INC.
