Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

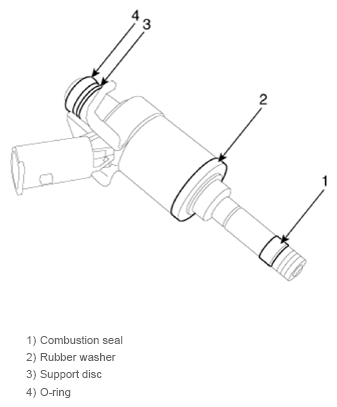

G14560878Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
    NOTE:
    • Do not use already used injector fixing clip again.
    • Do not reuse the support disc.
    • Do not reuse the injector rubber washer.
    • Do not reuse the combustion seal.
    • Install the component with the specified torques.
    • Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
    • Apply engine oil to the injector O-ring.
    • Do not use already used injector O-ring again.
    • Do not use already used bolt again.
    • When insert the injector, be careful not to damage the injector tip.
    • Do not reuse the high pressure fuel pipe.
