Spark Plug: Troubleshooting

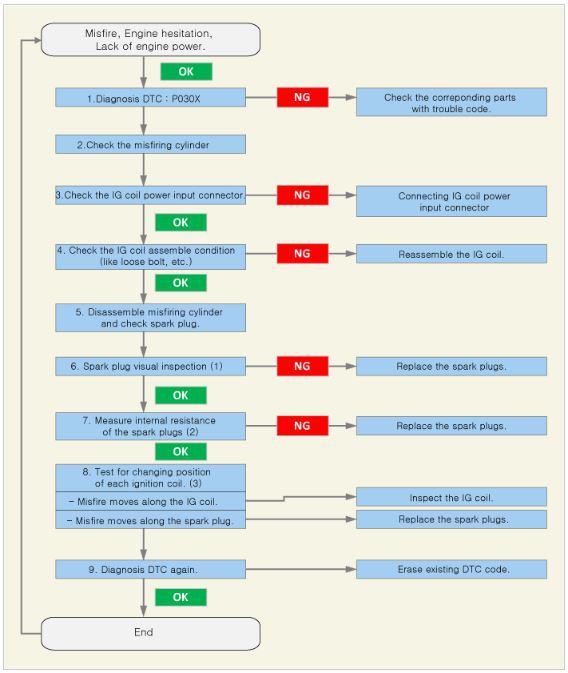

  1. Check the DTC code using the KDS (Refer to "DTC guide").
    G00620899Courtesy of KIA MOTORS AMERICA, INC.

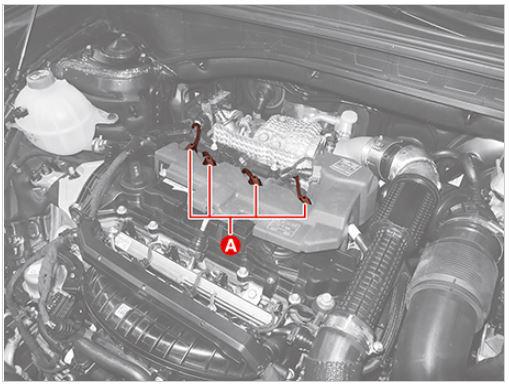

  2. Check the connection status of the ignition coil connector (A).
    G00620900Courtesy of KIA MOTORS AMERICA, INC.

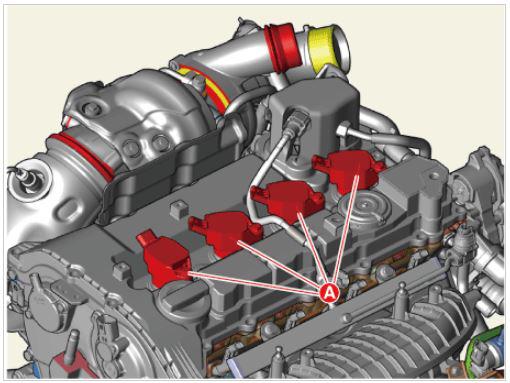

  3. Check the installation condition of the ignition coil (A).
    G00620901Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the spark plug.

    (Refer to Spark Plug - "Removal ")

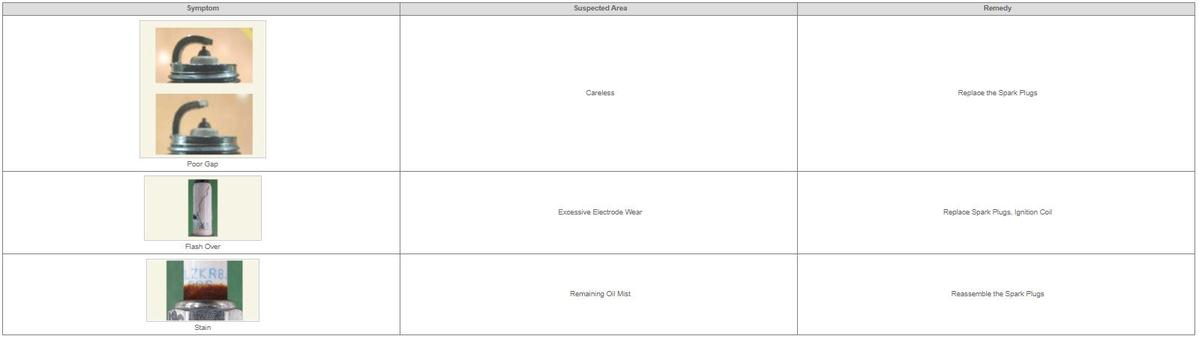

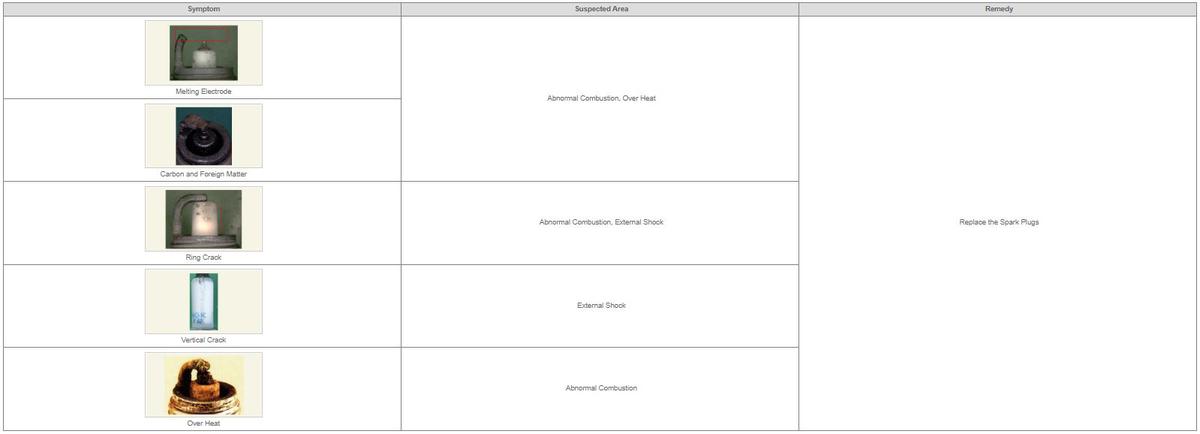

  5. Visual inspection of the spark plugs

    Spark plugs point gap:

    1.0 - 1.1 mm (0.0394 - 0.0433 in.)

    G00620902Courtesy of KIA MOTORS AMERICA, INC.
    G00620903Courtesy of KIA MOTORS AMERICA, INC.

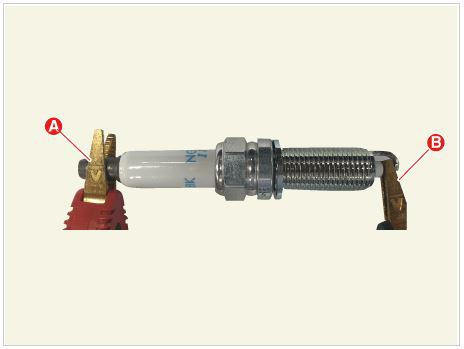

  6. Check the resistance between the spark plugs termina (A) and probe (B) by using a multi-tester of a resistance meter.

    Specification: 2 - 20 kΩ

    G00620904Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Avoid the contact resistance between probe and spark plugs. (when it occurs, measured value is not stabilized.)

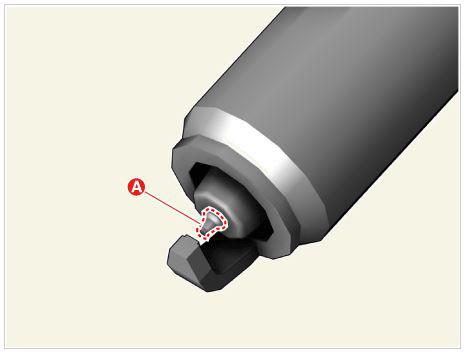

    • Be careful not to damage center electrode while measuring resistance.
      G00620905Courtesy of KIA MOTORS AMERICA, INC.
  7. Test for charging position of each ignition coil.

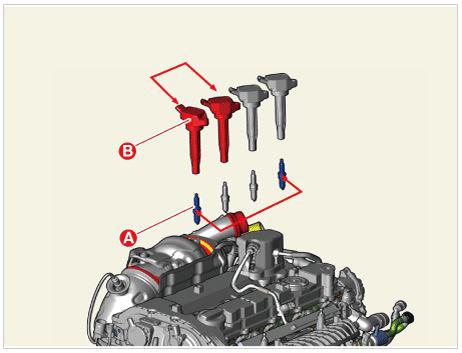

    1. Remove the spark plug and ignition coil fitted to the misfired cylinder and exchange them with one from another cylinder.

      (Refer to spark plug - "Removal ")

      G00620906Courtesy of KIA MOTORS AMERICA, INC.
    2. Replace the spark plugs, if misfire moves along the spark plugs.
