Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the high pressure fuel pipe.

    (Refer to Fuel Delivery System - "FUEL LINE ")

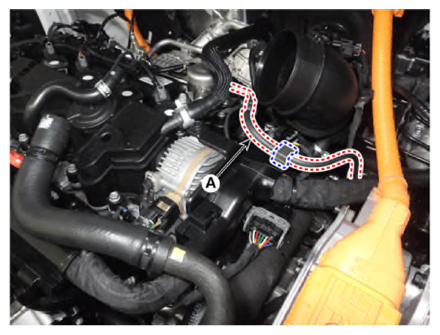

  3. Separate the fuel feed hose (A) by removing the fixing clip.
    G14956957Courtesy of KIA MOTORS AMERICA, INC.

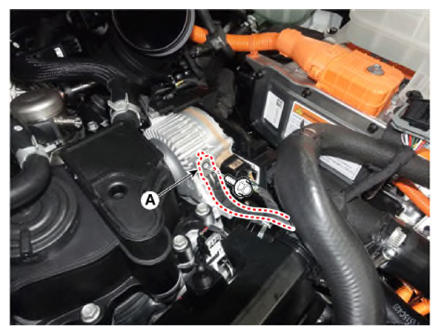

  4. Remove the ground line (A) by removing the bolt.

    Tightening torque:

    7.9 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

    G14956958Courtesy of KIA MOTORS AMERICA, INC.

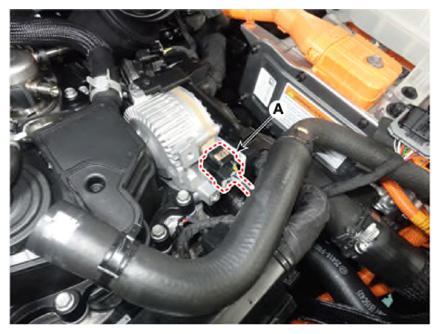

  5. Disconnect the Continuous Variable Valve Duration (CVVD) actuator connector (A).
    G14956959Courtesy of KIA MOTORS AMERICA, INC.

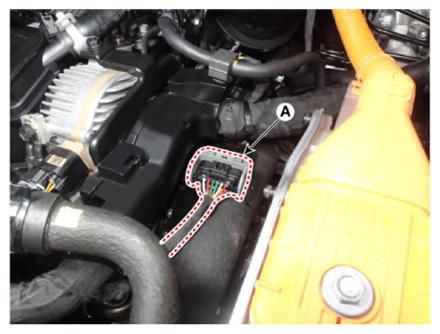

  6. Disconnect extension wiring connector (A).
    G14956960Courtesy of KIA MOTORS AMERICA, INC.

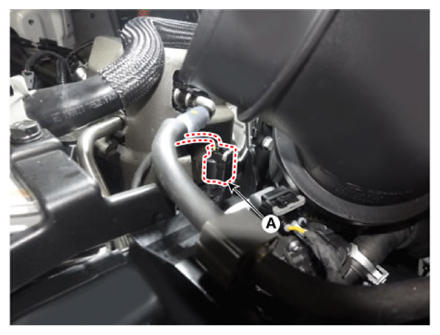

  7. Disconnect the camshaft position sensor (exhaust) connector (A).
    G14956961Courtesy of KIA MOTORS AMERICA, INC.

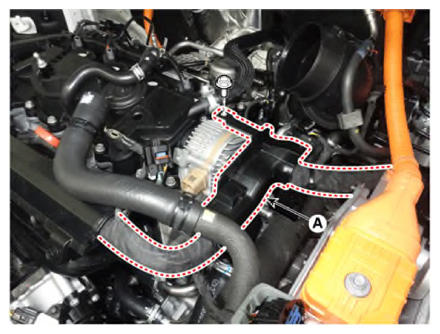

  8. Remove the wiring protector (A) by removing the bolt.
    G14956962Courtesy of KIA MOTORS AMERICA, INC.

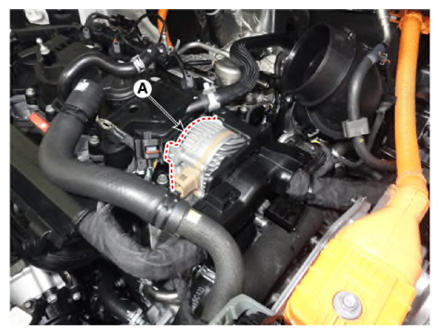

  9. Remove the CVVD actuator (A) by removing the bolts.

    Tightening torque:

    19.0-24.5 N.m (1.9-2.5 kgf.m, 13.8-18.1 lb.ft)

    G14956963Courtesy of KIA MOTORS AMERICA, INC.
