Repair Procedures: Installation

NOTE:
  • Install the ETC module to the specified torque.
  • If ETC module is dropped, it may cause internal damage. Do not use it.

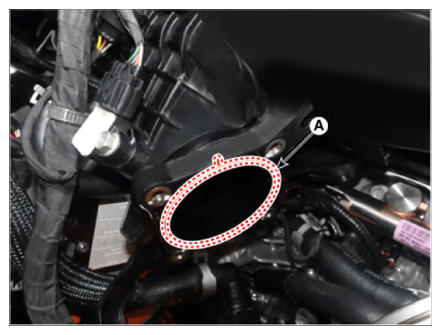

  • Check the installation condition of O-ring (A) before installing the ETC module.
    G14956984Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.

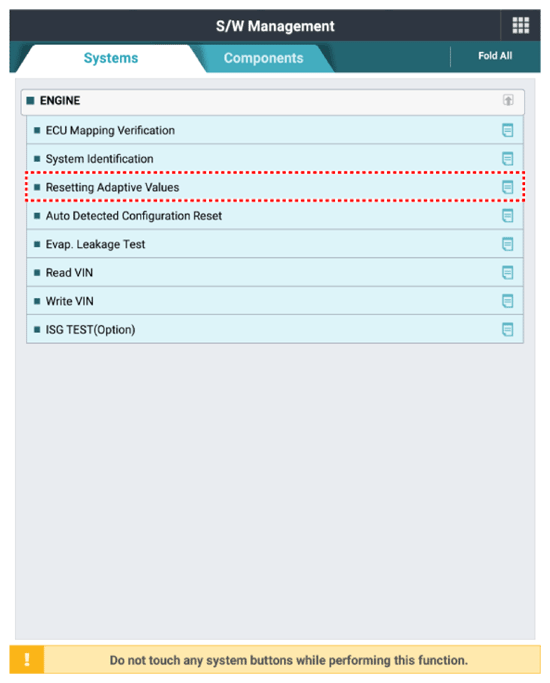

  2. Reset the ECM adaptive values after replacing the ETC module.
    G14956985Courtesy of KIA MOTORS AMERICA, INC.

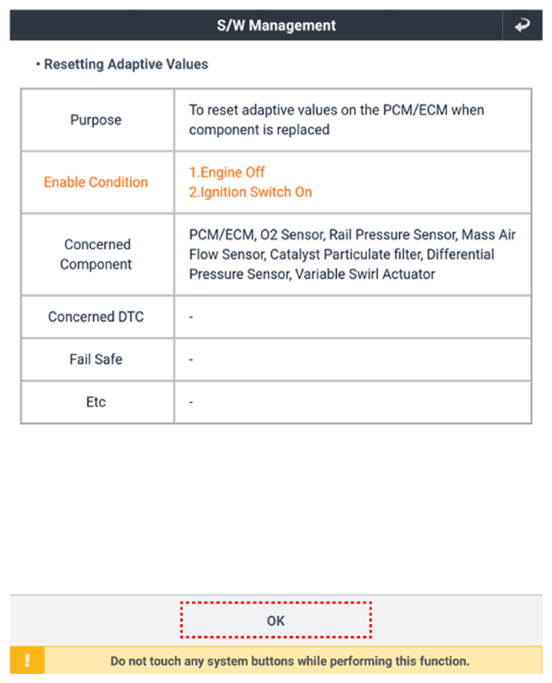

    G14956986Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the ETC learning procedure.

    (Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
