Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

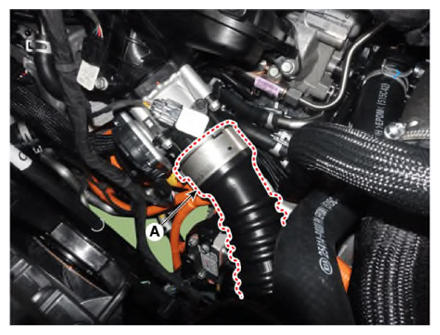

  2. Remove the air intake hose (A).
    G14956981Courtesy of KIA MOTORS AMERICA, INC.

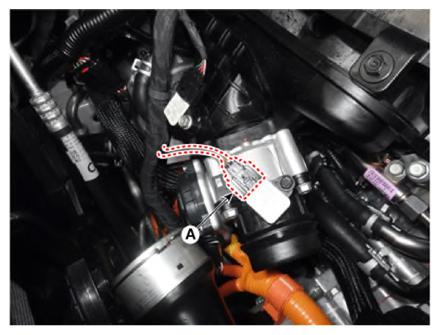

  3. Disconnect the Boost Pressure Sensor (BPS) connector (A).
    G14956982Courtesy of KIA MOTORS AMERICA, INC.

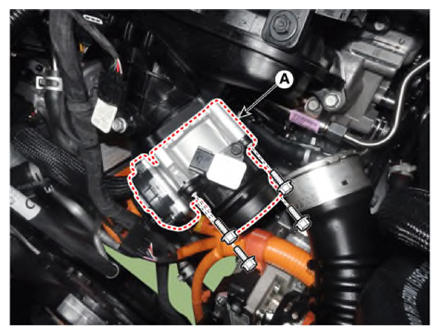

  4. Remove the Electronic Throttle Control (ETC) module (A) after removing the mounting bolts.

    Tightening torque:

    9.8-11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14956983Courtesy of KIA MOTORS AMERICA, INC.
