Repair Procedures: Adjustment

NOTE: Perform the following procedure when replacing Engine Control Module (ECM) (New parts/Reused parts).
  1. Perform the neutral mode using the KDS when replacing with a reused ECM.

    [Non-Smart Key]

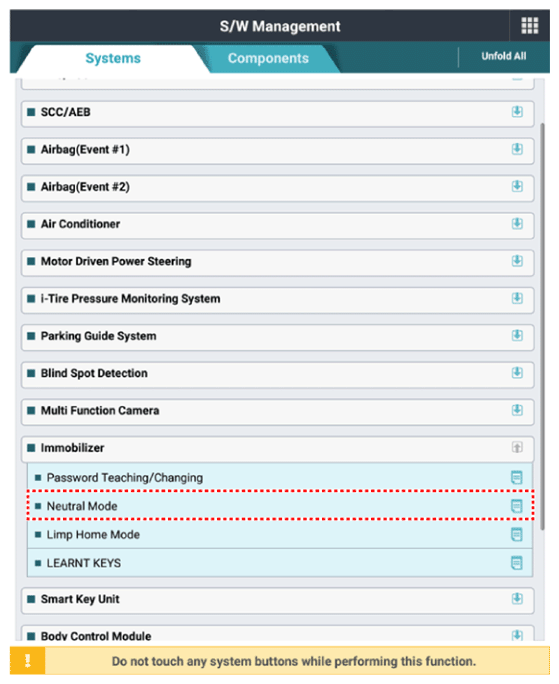

    G14956971Courtesy of KIA MOTORS AMERICA, INC.

    [Smart Key]

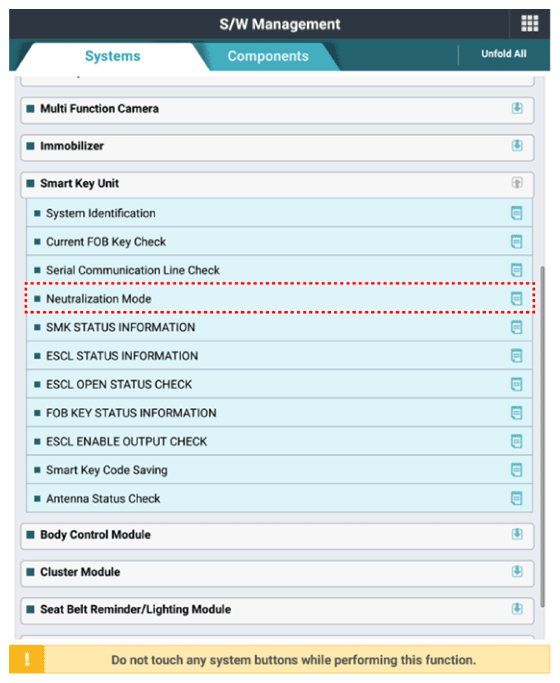

    G14956972Courtesy of KIA MOTORS AMERICA, INC.
  2. Perform the "Key Teaching" procedure by using the KDS.

    [Non-Smart Key]

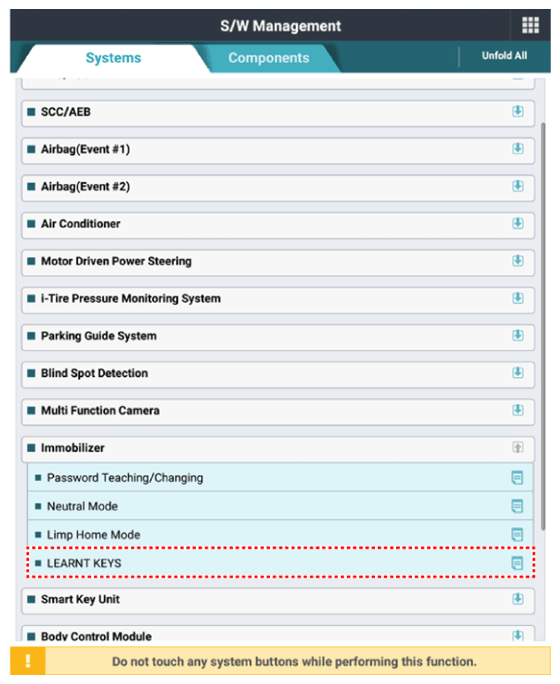

    G14956973Courtesy of KIA MOTORS AMERICA, INC.

    [Smart Key]

    Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

  3. Perform the VIN writing procedure by using the KDS.

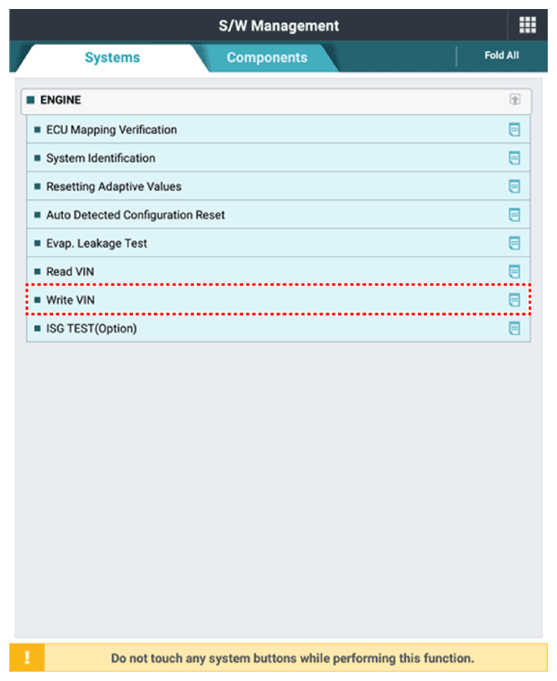

    G14956974Courtesy of KIA MOTORS AMERICA, INC.

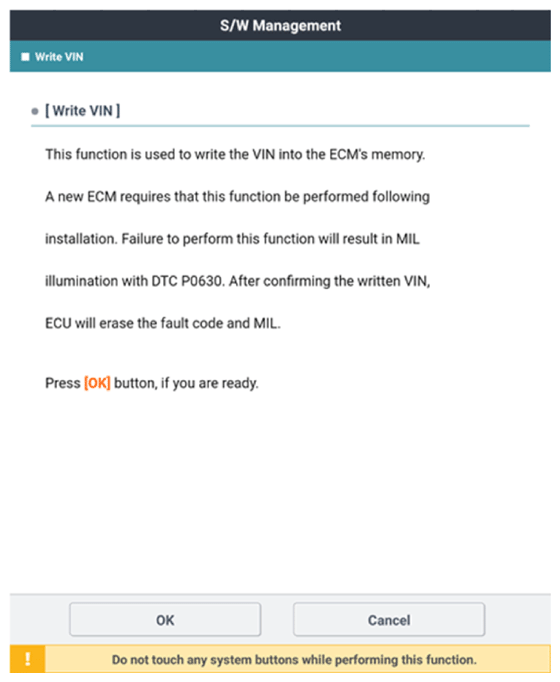

    G14956975Courtesy of KIA MOTORS AMERICA, INC.
  4. Perform Electronic Throttle Control (ETC) module learning procedure

    (Refer to Electronic Throttle Control System - "ADJUSTMENT ")
