Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the air duct and air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the Variable Force Solenoid (VFS) connector (A).

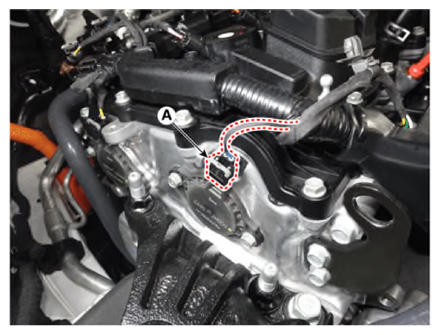

    Intake

    G14957053Courtesy of KIA MOTORS AMERICA, INC.

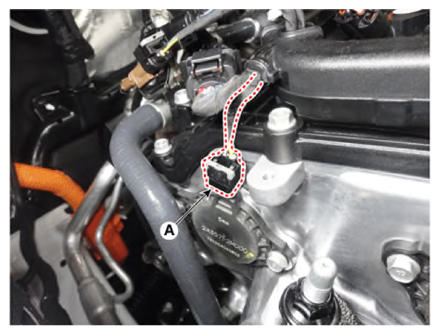

    Exhaust

    G14957054Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the VFS (A) after removing the mounting bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    Intake

    G14957055Courtesy of KIA MOTORS AMERICA, INC.

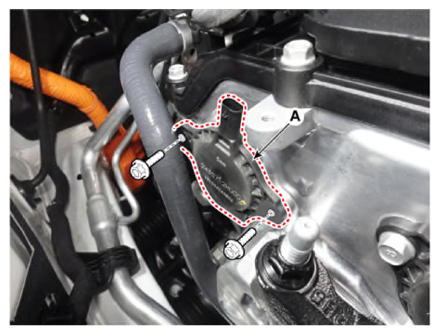

    Exhaust

    G14957056Courtesy of KIA MOTORS AMERICA, INC.
