Repair Procedures: Removal

1. Remove the ignition coil.

   (Refer to Ignition System - "IGNITION COIL ")

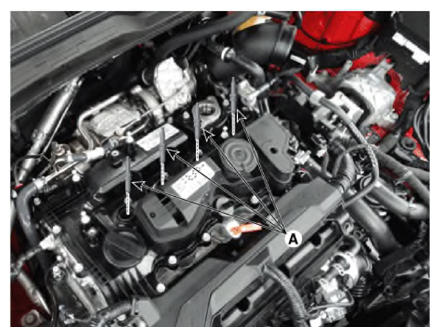

2. Remove the spark plug (A) by using a spark plug wrench.

   Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.
