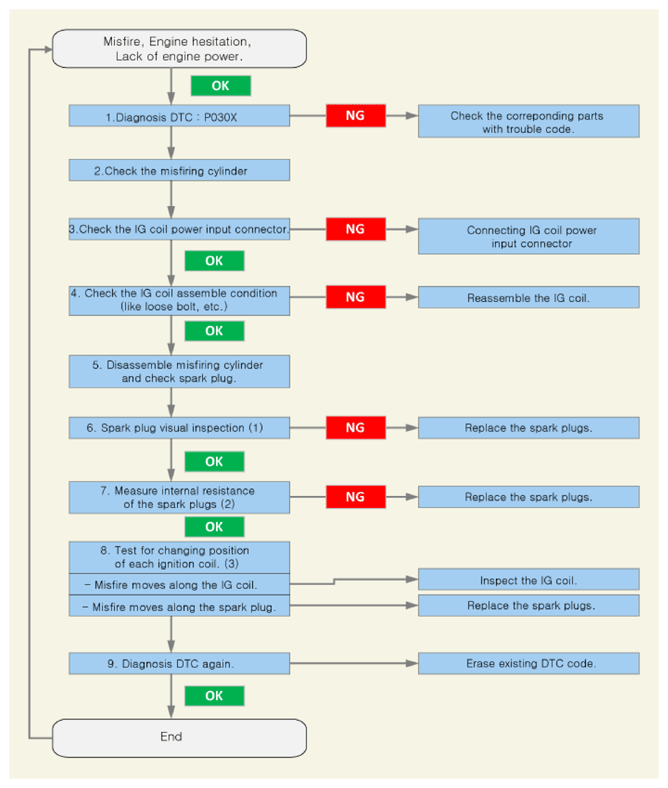

Spark Plug: Troubleshooting

Check the DTC code using the KDS (Refer to "DTC INDEX (PHEV) ").

Courtesy of KIA MOTORS AMERICA, INC.

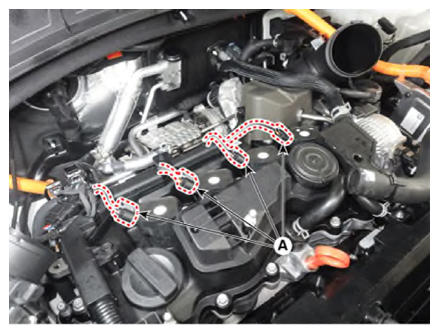

Check the connection status of the ignition coil connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

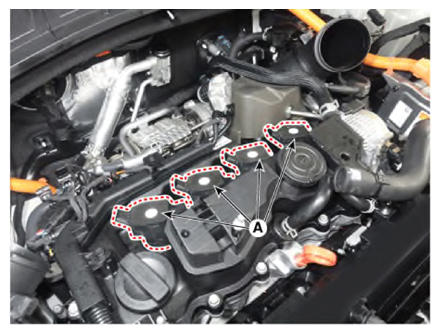

Check the installation condition of the ignition coil (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the spark plug.
(Refer to Spark Plug - "REPAIR PROCEDURES ")

Visual inspection of the spark plugs.

Spark plugs point gap:

0.7 - 0.8 mm (0.027 - 0.031 in.)

Symptom	Suspected Area	Correction
Courtesy of KIA MOTORS AMERICA, INC. Melting Electrode	Abnormal Combustion, Over Heat	Replace the Spark Plugs
Courtesy of KIA MOTORS AMERICA, INC. Carbon and Foreign Matter	Abnormal Combustion, Over Heat
Courtesy of KIA MOTORS AMERICA, INC. Ring Crack	Abnormal Combustion, External Shock
Courtesy of KIA MOTORS AMERICA, INC. Vertical Crack	External Shock
Courtesy of KIA MOTORS AMERICA, INC. Over Heat	Abnormal Combustion

Symptom	Suspected Area	Correction
Courtesy of KIA MOTORS AMERICA, INC. Poor Gap	Careless	Replace the Spark Plugs
Courtesy of KIA MOTORS AMERICA, INC. Flash Over	Excessive Electrode Wear	Replace Spark Plugs, Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC. Stain	Remaining Oil Mist	Reassemble the Spark Plugs

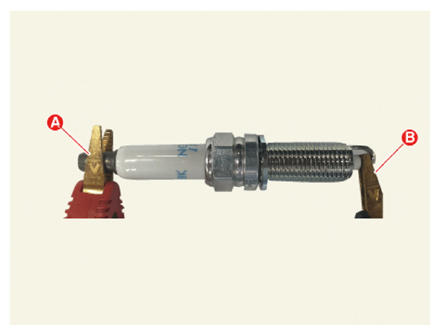

Check the resistance between the spark plugs terminal (A) and probe (B) by using a multi-tester or a resistance meter.
Specification : 2 - 20 kΩ

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

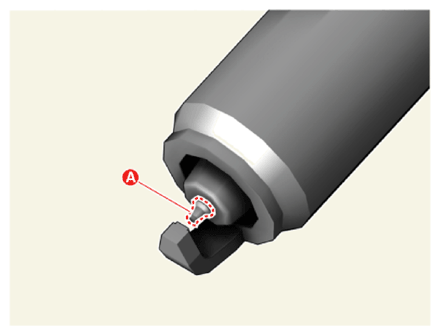

- Avoid the contact resistance between probe and side electrode (if contact occurs, measured value may not be correct).
- Be careful not to damage center electrode while measuring resistance.
Courtesy of KIA MOTORS AMERICA, INC.

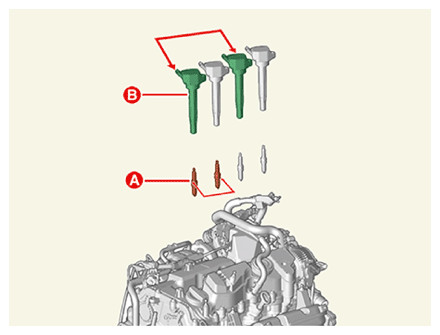

Test for changing position of each ignition coil.

Remove the spark plug and ignition coil fitted to the misfired cylinder and exchange them with the one of other cylinders.
(Refer to Spark Plug - "REPAIR PROCEDURES ")

Courtesy of KIA MOTORS AMERICA, INC.
Replace the spark plugs, if misfire moves along the spark plugs.
