Home >> Kia >> 2022 >> Stinger GT2, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> RCV Control Solenoid Valve >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

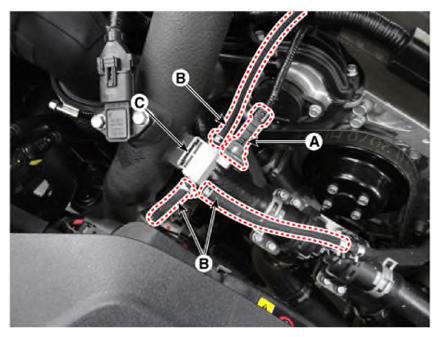

  2. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  3. Remove the RCV control solenoid valve (C).
G14999962Courtesy of KIA MOTORS AMERICA, INC.
