Position Switch: Removal

  1. Shift transaxle to "N".
  2. Disconnect the battery negative (-) cable.
  3. Remove the air duct and air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

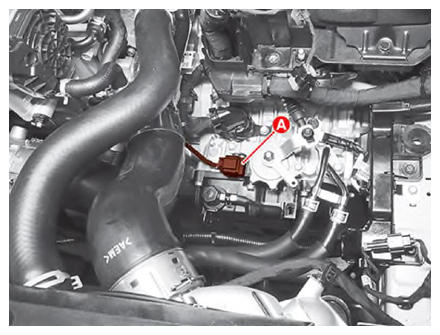

  4. Disconnect the position switch connector (A).
    G14797559Courtesy of KIA MOTORS AMERICA, INC.

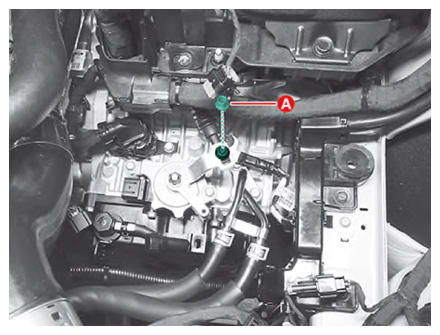

  5. Remove the shift cable after removing the nut (A).
    G14797560Courtesy of KIA MOTORS AMERICA, INC.

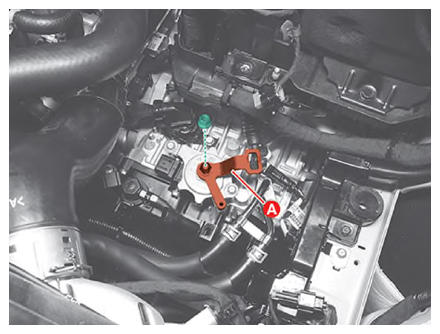

  6. Remove the manual control lever (A) and the washer after removing the nut.
    G14797561Courtesy of KIA MOTORS AMERICA, INC.

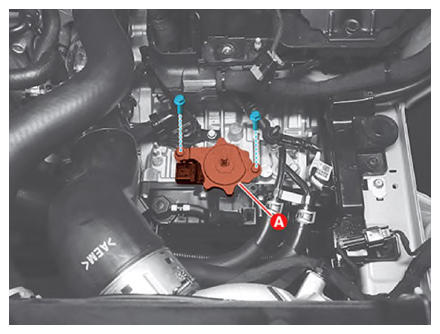

  7. Remove the position switch (A) after removing the bolts.
G14797562Courtesy of KIA MOTORS AMERICA, INC.
