Smart Key Unit: Inspection: Buzzer

Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

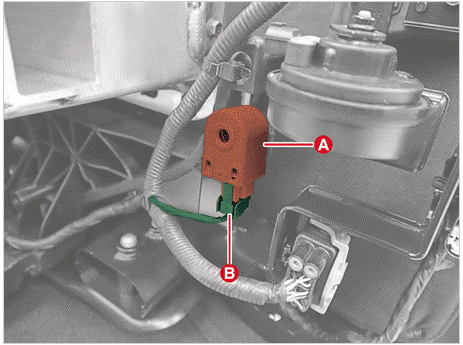

Disconnect the connector (B) from buzzer (A).

Courtesy of KIA MOTORS AMERICA, INC.

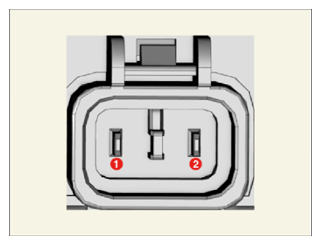

Check for continuity between the terminals.

Courtesy of KIA MOTORS AMERICA, INC.
