Tailgate Outside Handle Switch

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to Battery Control System - "AUXILIARY 12 V BATTERY 2WD ")

    (Refer to Battery Control System - "AUXILIARY 12 V BATTERY 4WD ")

  2. Remove the tailgate lid trim.

    (Refer to Body - "TAILGATE LID TRIM ")

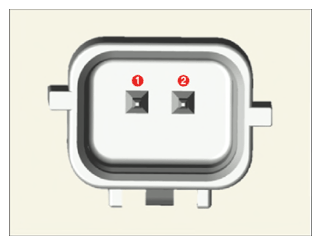

  3. Check for continuity between the terminals.
G15812776Courtesy of KIA MOTORS AMERICA, INC.
Terminal Function
Switch OFF Switch ON
1 - 2 Discontinuity Continuity
