Home >> Kia >> 2023 >> Seltos EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Intake Middle Lock Control Solenoid >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the battery negative (-) terminal.

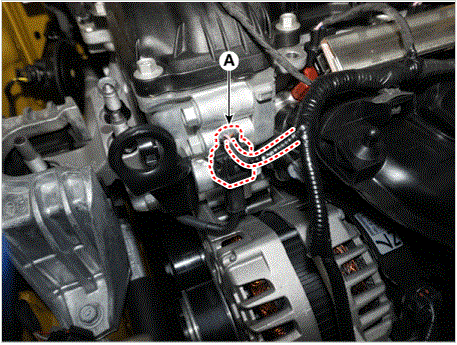

  2. Disconnect the intake middle lock control solenoid connector (A)
    G00614849Courtesy of KIA MOTORS AMERICA, INC.

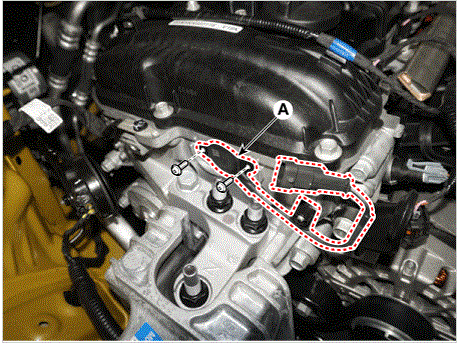

  3. Remove the intake middle lock control solenoid (A) after loosening the mounting screws.

    Tightening Torque:  8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

    G00614850Courtesy of KIA MOTORS AMERICA, INC.
