Neutralization Status Check

Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

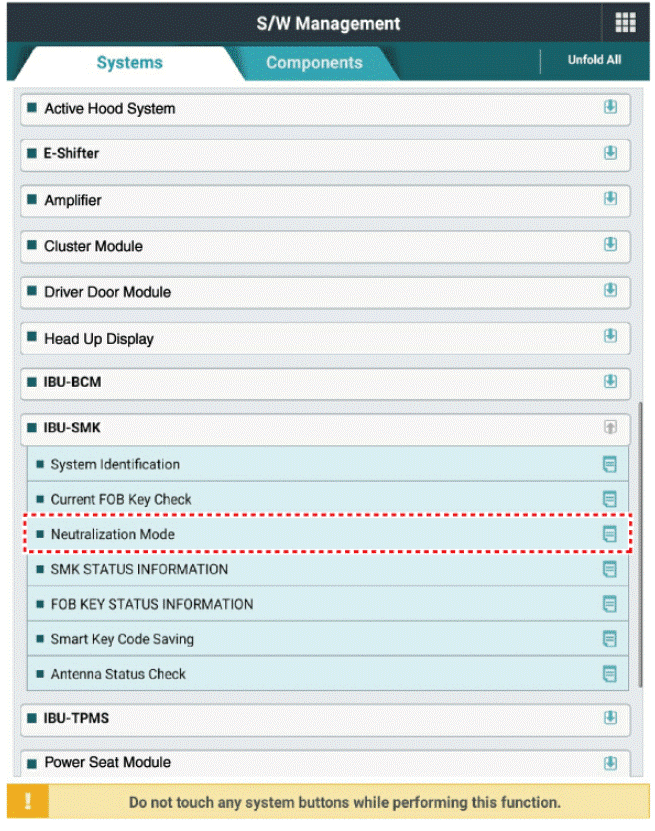

After IG ON, select the "Neutralization mode".

G15717156

Courtesy of KIA MOTORS AMERICA, INC.

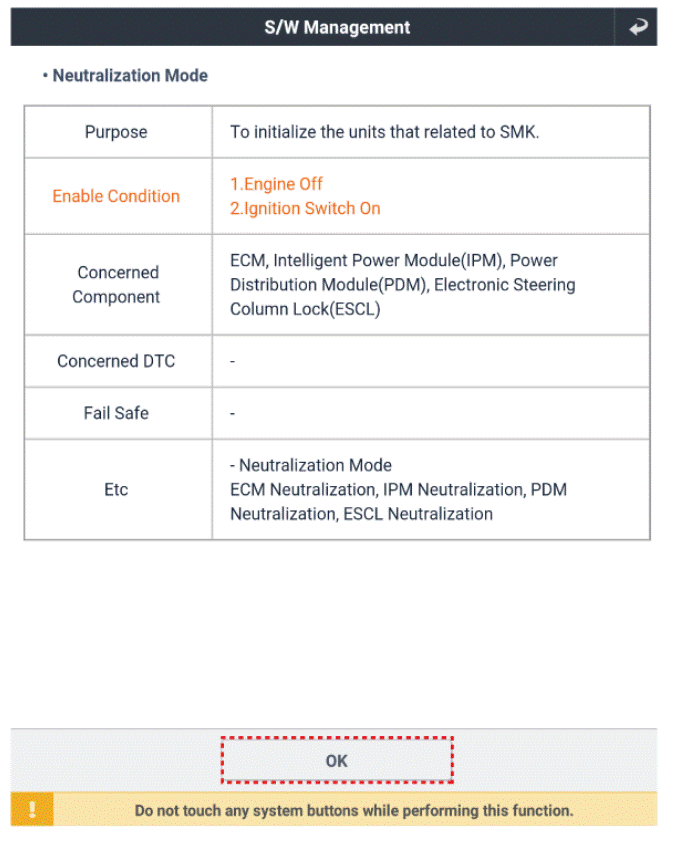

G15717157

Courtesy of KIA MOTORS AMERICA, INC.

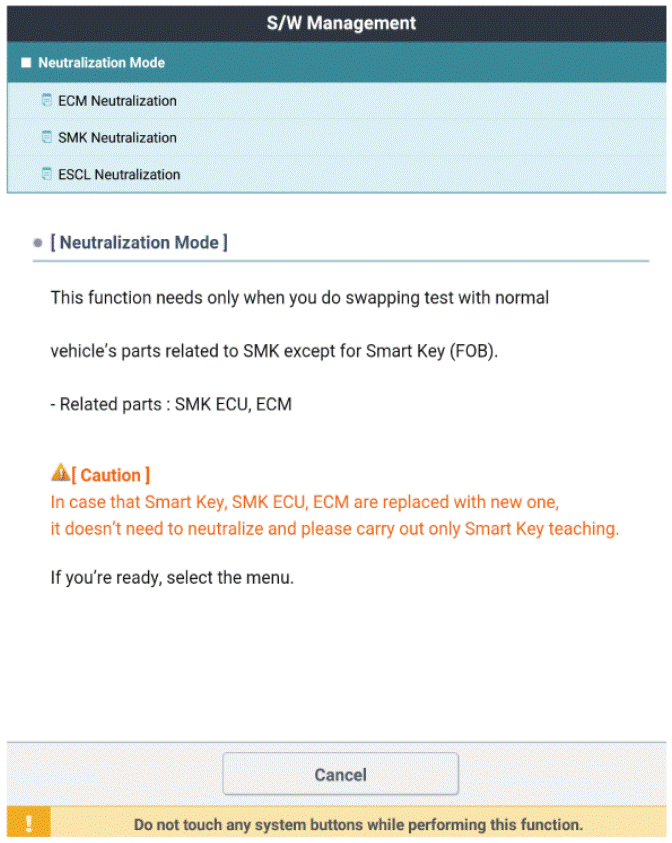

G15717158

Courtesy of KIA MOTORS AMERICA, INC.

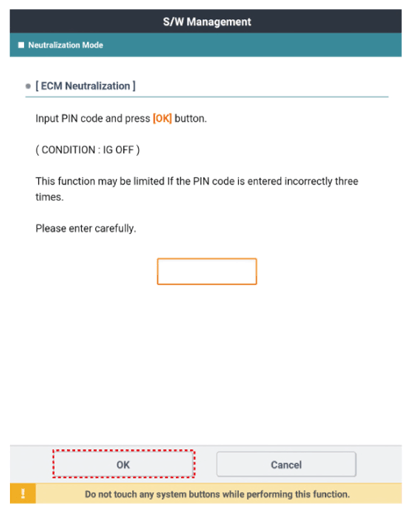

G15717159

Courtesy of KIA MOTORS AMERICA, INC.

G15717160

Courtesy of KIA MOTORS AMERICA, INC.

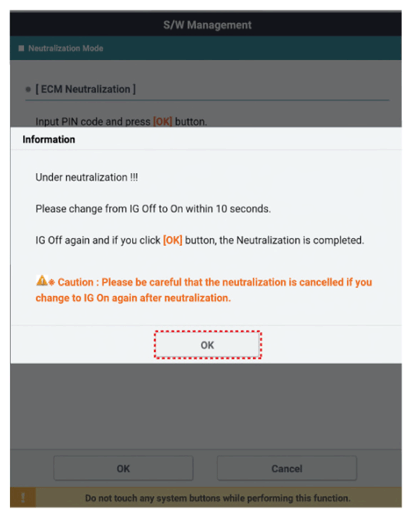

G15717161

Courtesy of KIA MOTORS AMERICA, INC.

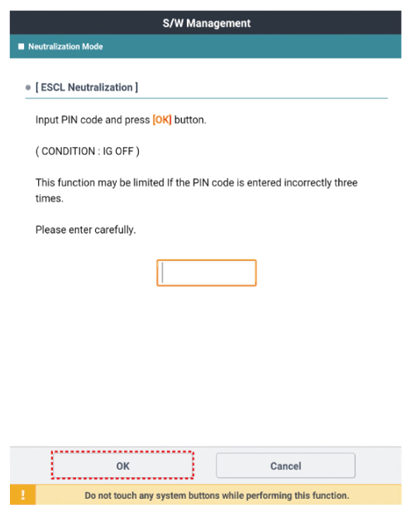

G15717162

Courtesy of KIA MOTORS AMERICA, INC.

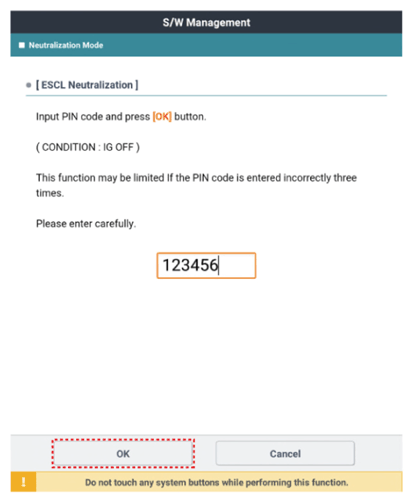

G15717163

Courtesy of KIA MOTORS AMERICA, INC.

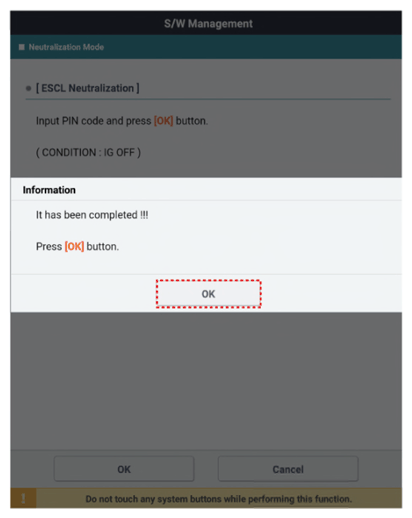

G15717164

Courtesy of KIA MOTORS AMERICA, INC.

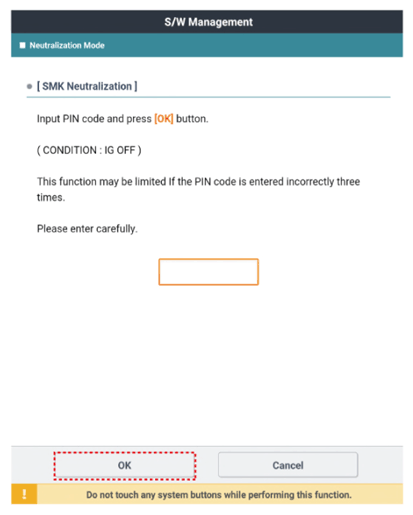

G15717165

Courtesy of KIA MOTORS AMERICA, INC.

G15717166

Courtesy of KIA MOTORS AMERICA, INC.

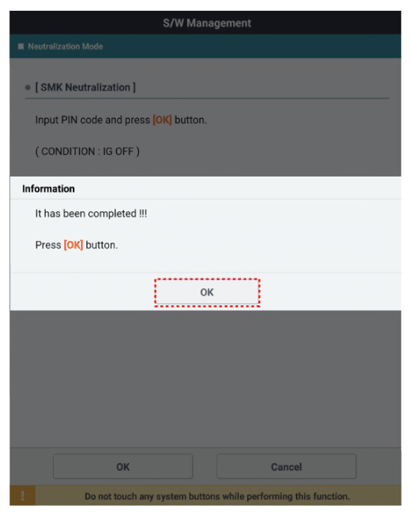

G15717167

Courtesy of KIA MOTORS AMERICA, INC.
