Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

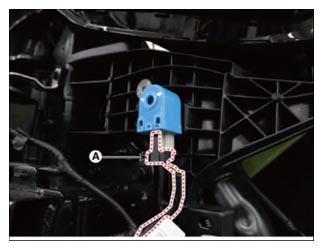

  3. Disconnect the buzzer connector (A).
    G15717124Courtesy of KIA MOTORS AMERICA, INC.

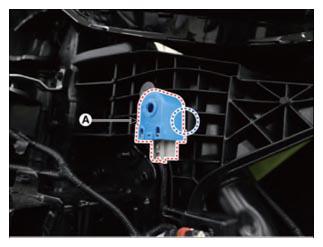

  4. Remove the buzzer (A).
G15717125Courtesy of KIA MOTORS AMERICA, INC.
