Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

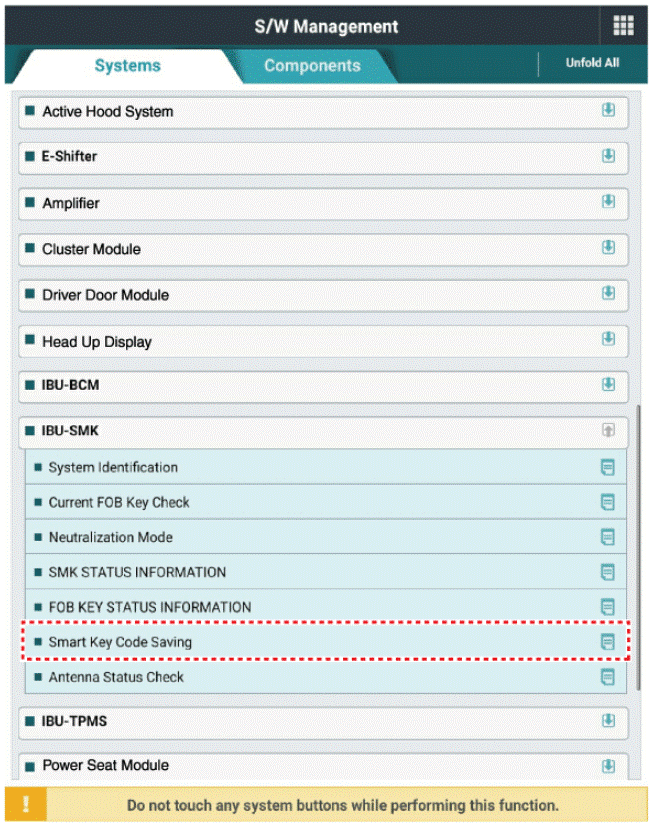

    G15717111Courtesy of KIA MOTORS AMERICA, INC.

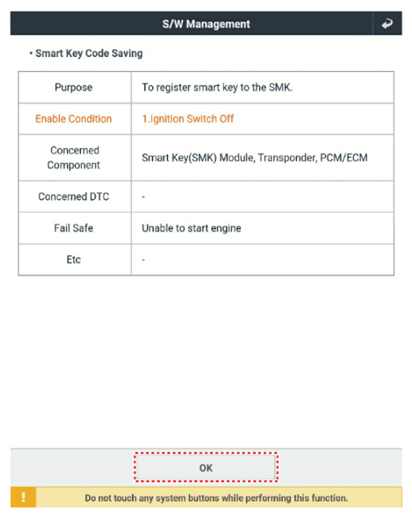

    G15717112Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

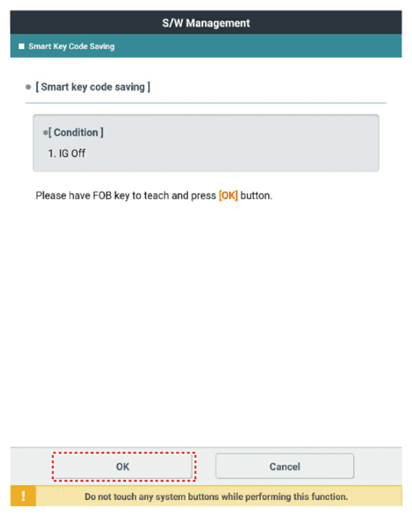

    G15717113Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

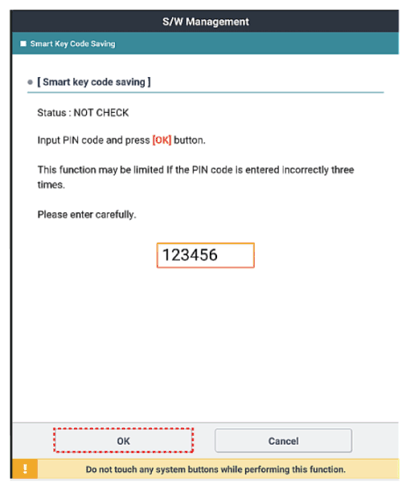

  5. Input the "Pin code" for first key teaching.

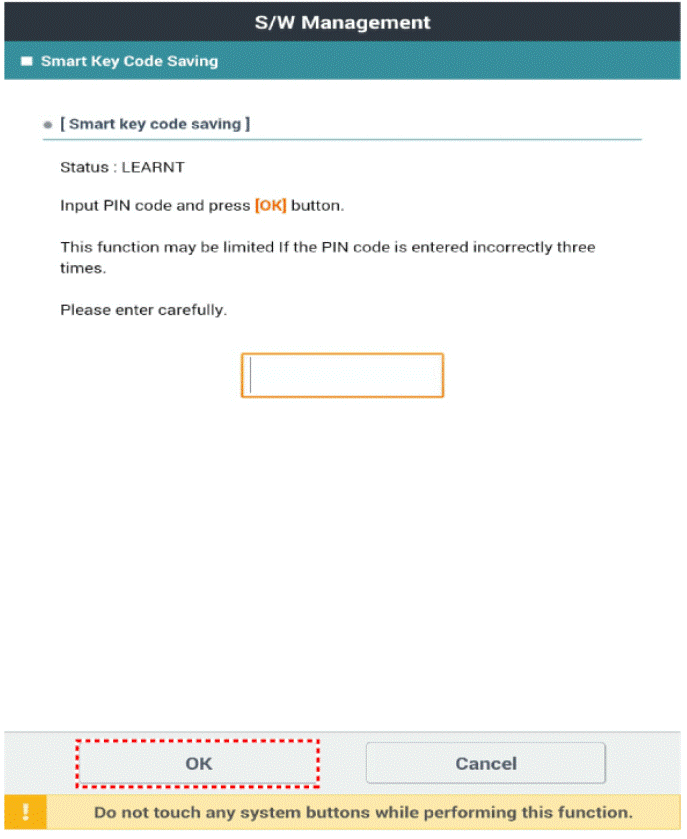

    G15717114Courtesy of KIA MOTORS AMERICA, INC.
    G15717115Courtesy of KIA MOTORS AMERICA, INC.

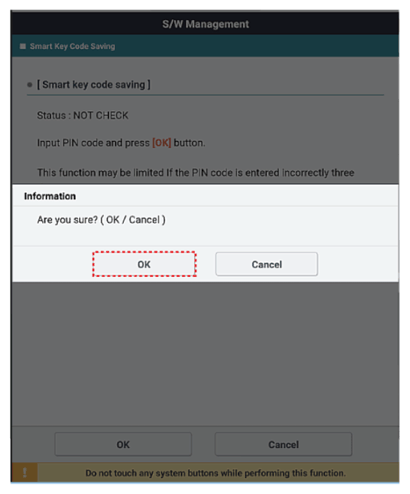

    G15717116Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

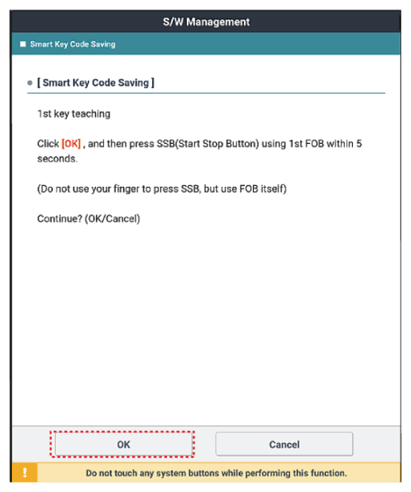

    G15717117Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

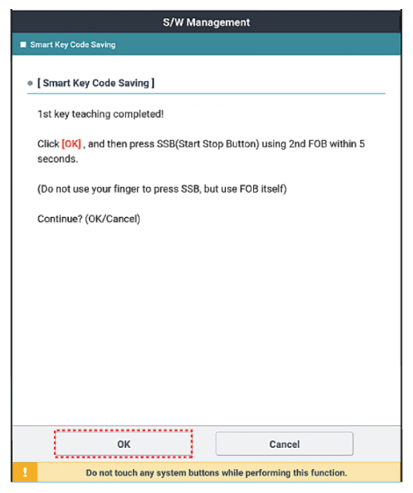

    G15717118Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

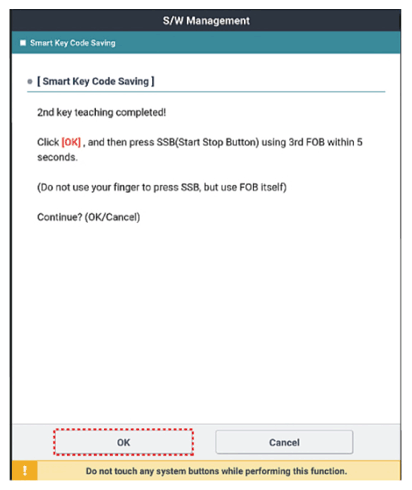

    G15717119Courtesy of KIA MOTORS AMERICA, INC.

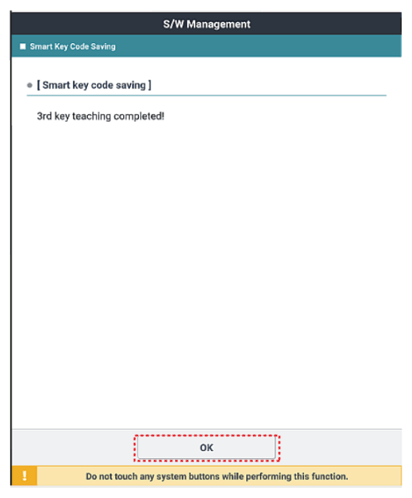

    G15717120Courtesy of KIA MOTORS AMERICA, INC.

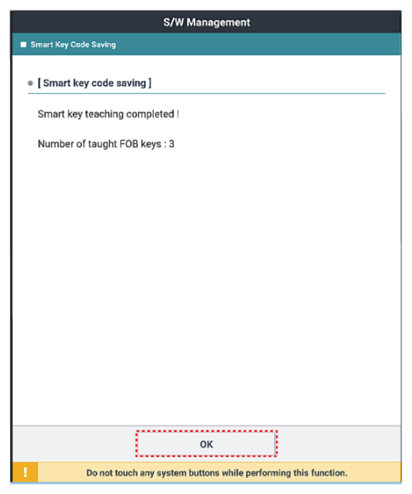

  9. Then the screen will be shown as below when key teaching process is completed.
G15717121Courtesy of KIA MOTORS AMERICA, INC.
