Repair Procedures: Inspection

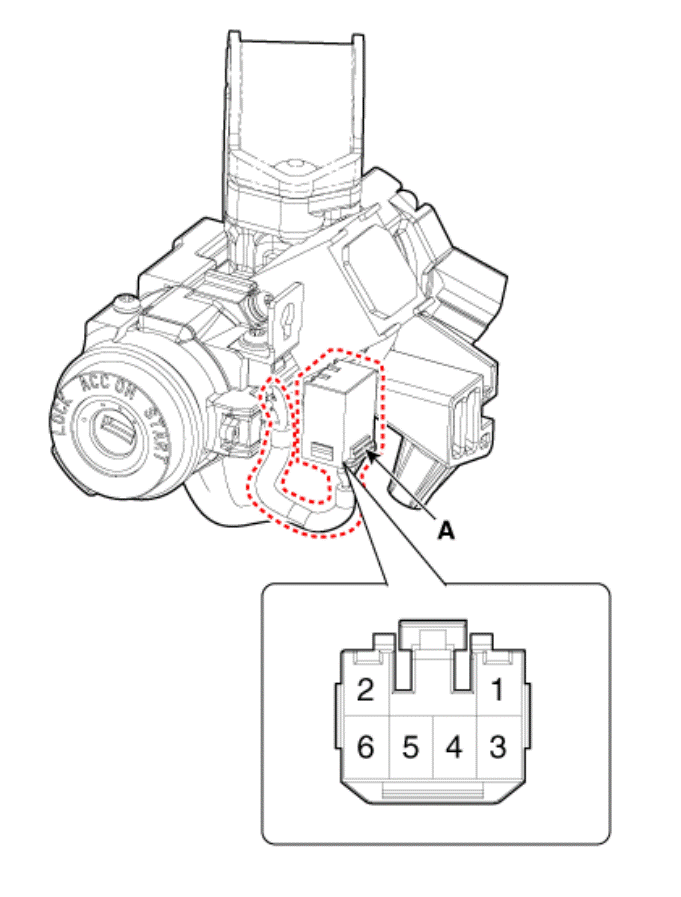

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G15716820Courtesy of KIA MOTORS AMERICA, INC.

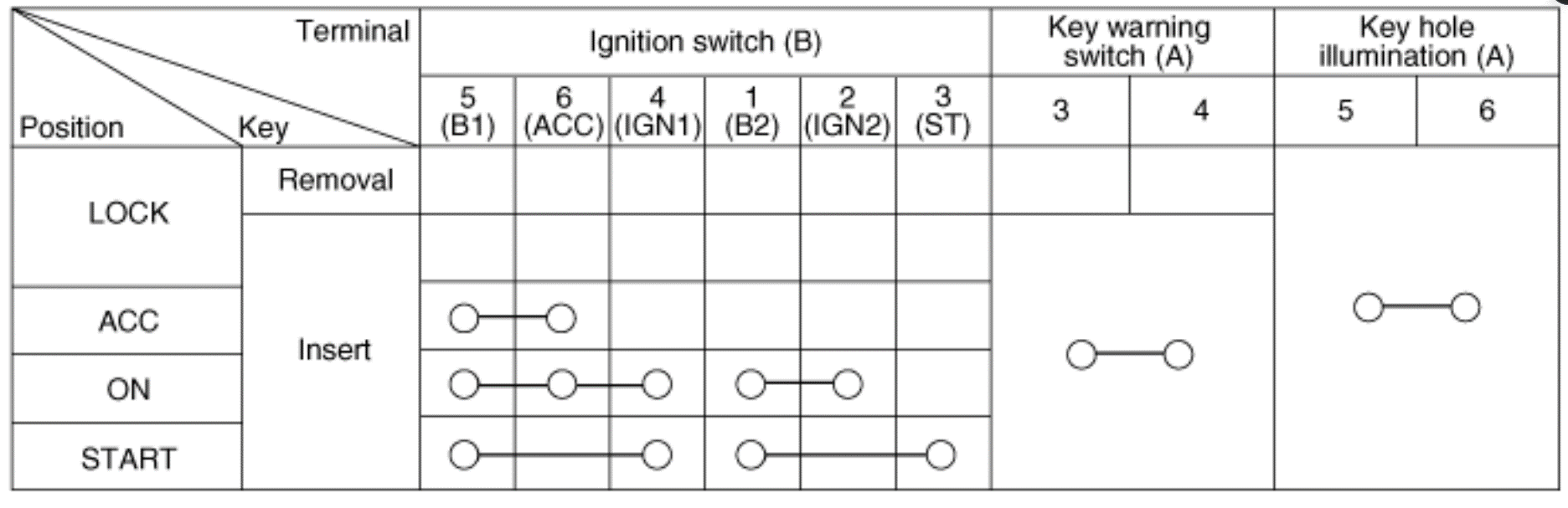

  2. Check for continuity between the terminals.
G15716821Courtesy of KIA MOTORS AMERICA, INC.
