Power Window Sub Switch

  1. Remove the door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

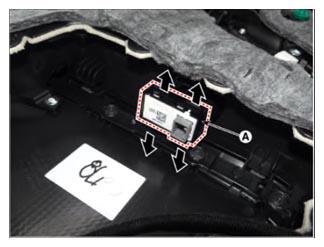

  2. Remove the power window sub switch (A) by pushing the holders in the direction of arrow.
G15717062Courtesy of KIA MOTORS AMERICA, INC.
